Automatic Folder Gluer Stitcher Machine
BONXI Automatic Folder Gluer Stitcher Machine combines folding, gluing and stitching functions into one production line.
Designed for corrugated carton manufacturers, this machine provides high-speed carton production with stable performance, easy operation and reduced labor costs.
The machine is suitable for producing shipping cartons, industrial packaging boxes and various corrugated boxes.
Key Features
High Speed Production
Maximum gluing speed up to 170 m/min. Stitching speed up to800 stitches/min.
Automatic Adjustment
PLC and touch screen control system. Input carton size and the machine adjusts automatically.
3-in-1 Function Integration
Combines feeding, folding, gluing and stitching in one machine.
Labor Saving
Automatic operation reduces labor requirements and improves production efficiency.
Technical Parameters
| Model | 2600-F |
| Max Sheet Size | 2600 mm |
| Min Carton Size | 640 mm (Gluing) / 740 mm (Stitching) |
| Gluing Speed | Up to 170 m/min |
| Stitching Speed | Up to 800 stitches/min |
| Control System | PLC + Touch Screen |
| Function | Feeding, Folding, Gluing and Stitching |
| Application | Corrugated carton boxes production |
Machine Structure
The BONXI Automatic Folder Gluer Stitcher consists of five main sections: feeding unit, folding & gluing unit, stitching unit, carton correction unit and counting & stacking unit.

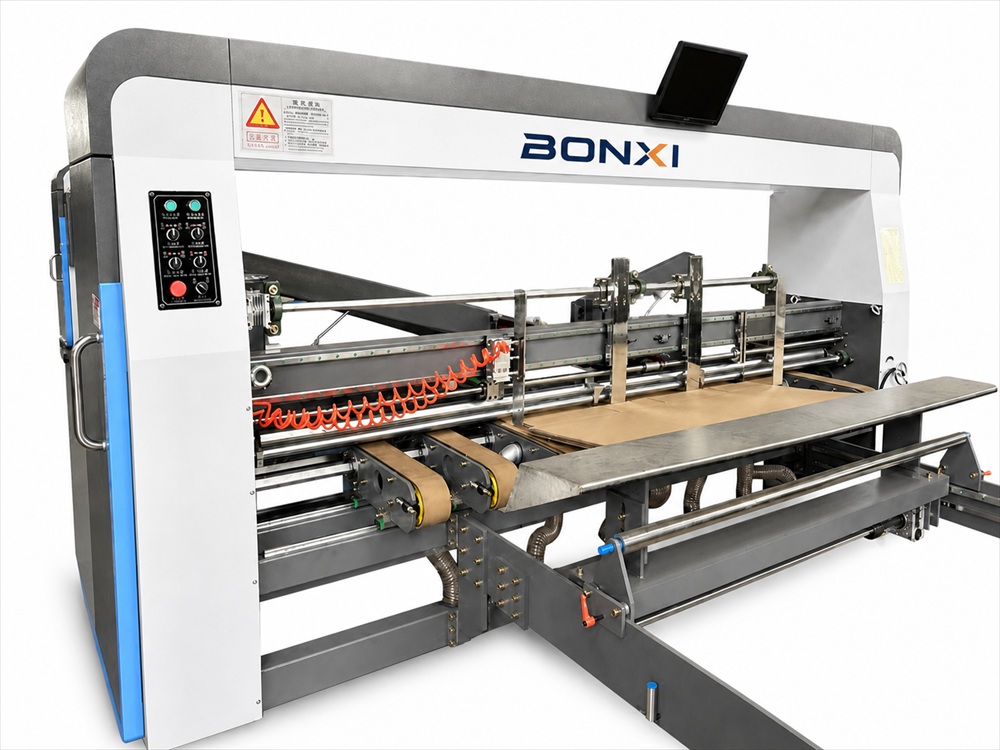

01. Feeding Unit
- The feeding unit adopts vacuum suction technology to ensure stable and continuous carton board feeding.
- It improves feeding accuracy and provides reliable performance during high-speed production.

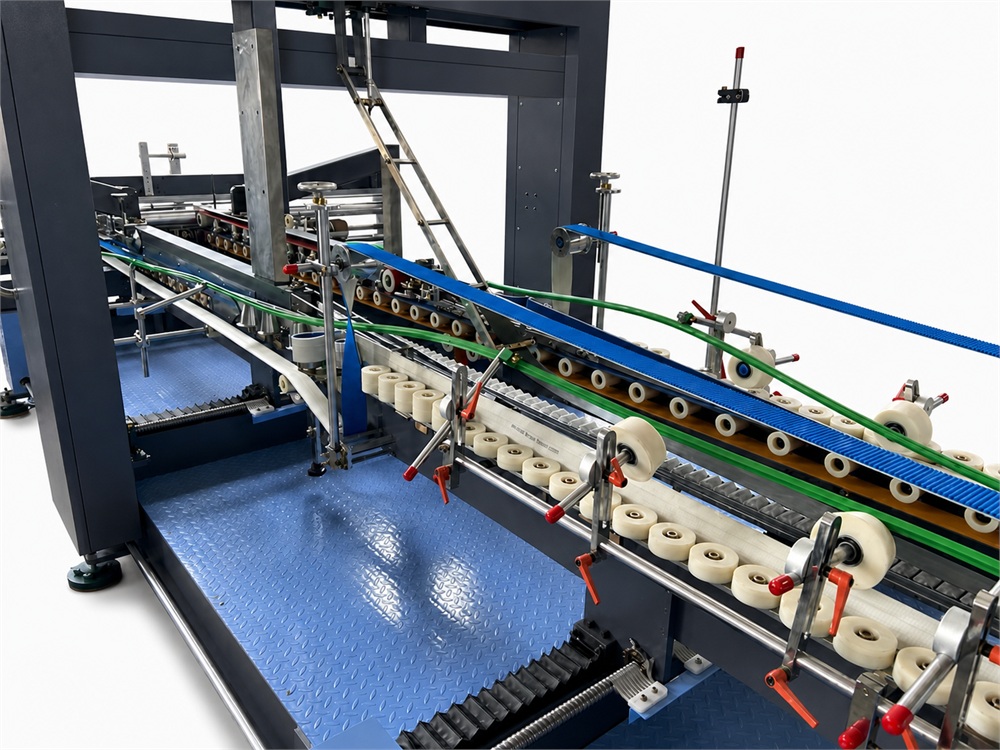

02. Folding & Gluing Unit
- The gluing and folding unit adopts durable conveyor belts and precision adjustment structure.
- It ensures accurate folding and strong bonding of corrugated cartons during continuous production.

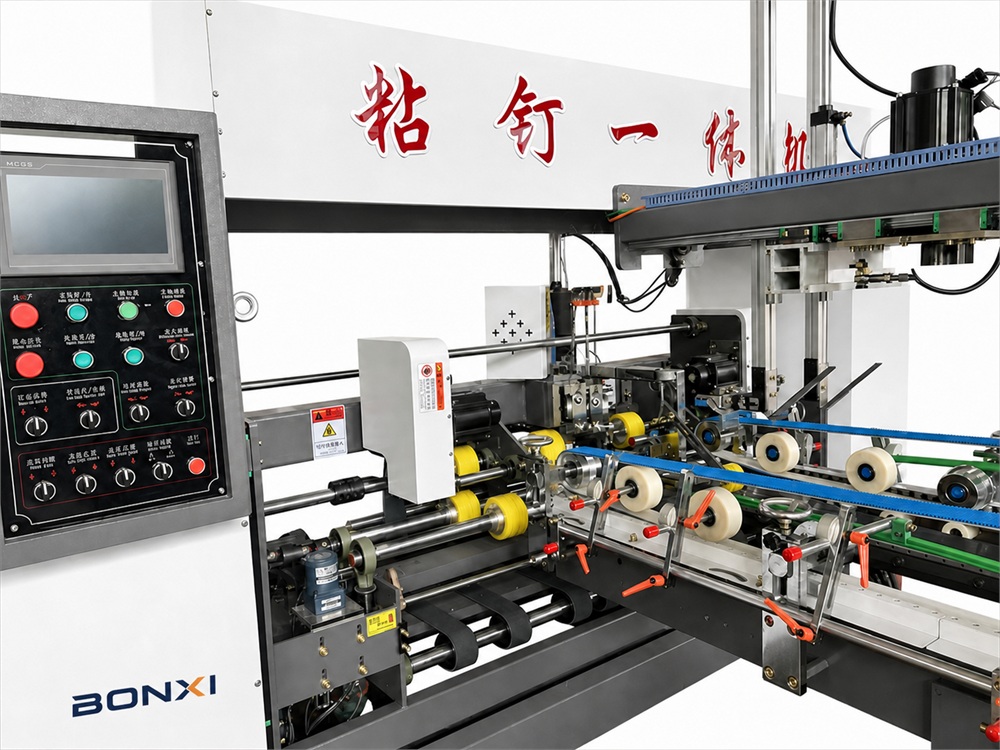

03. Stitching Unit
- The stitching unit is equipped with a high-performance alloy stitching head.
- It supports different stitching modes and provides strong and reliable carton stitching performance.

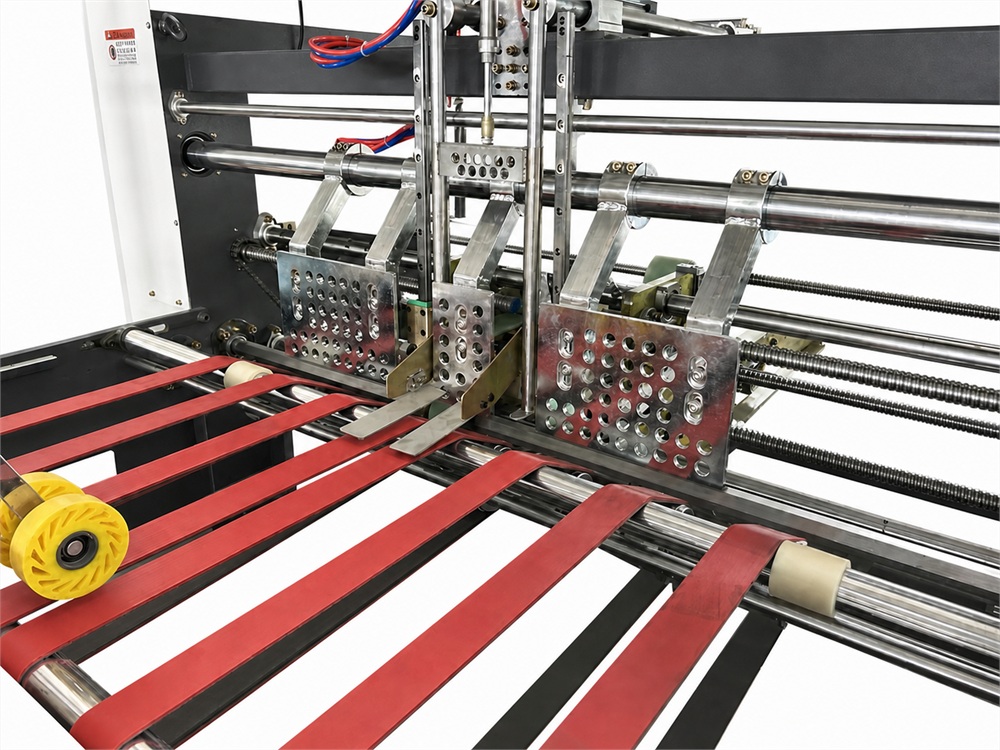

04. Carton Correction Unit
- The carton correction unit automatically adjusts carton position to ensure accurate alignment during high-speed production.
- It helps maintain accurate carton alignment and improves finished carton quality.

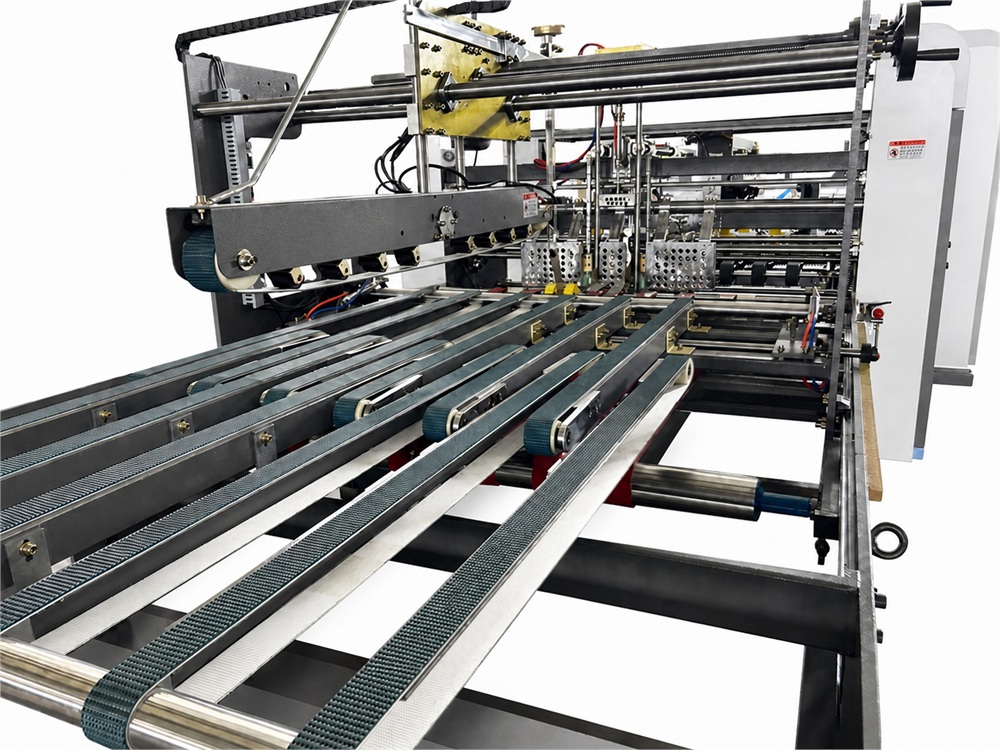

05. Counting & Stacking Unit
- The automatic counting and stacking unit ensures smooth carton collection.
- The stacking system improves production efficiency and makes carton packing more convenient.
