Automatic Flute Laminator
- BONXI automatic flute laminator is designed for high precision lamination of paperboard and corrugated board.
- With servo alignment system, intelligent PLC control and high-speed glue coating technology, it provides stable production, accurate positioning and efficient operation for carton packaging factories.
- Maximum speed up to 120 m/min with laminating accuracy ±1mm.
Key Features
Three-in-One Laminating
Supports two-layer and three-layer lamination of paperboard and corrugated board.
High-Speed Production
Maximum mechanical speed reaches 120 m/min for efficient continuous production.
Servo Alignment System
Photoelectric sensors and independent servo motors achieve accuracy up to ±1 mm.
Precision Glue Control
The precision anilox roller provides uniform coating while reducing glue waste.
Need help selecting the right machine configuration?Tell us your carton size, board type and required capacity. Our team will recommend a practical solution.
WhatsApp BONXITechnical Parameters
| Parameter | HL-1450G | HL-1700G |
|---|---|---|
| Maximum Sheet Size | 1450 × 1450 mm | 1700 × 1450 mm |
| Minimum Sheet Size | 400 × 400 mm | 400 × 400 mm |
| Top Sheet Thickness | 150–450 g/m² | 150–450 g/m² |
| Bottom Sheet Thickness | 0.5–10 mm | 0.5–10 mm |
| Maximum Mechanical Speed | 120 m/min | 120 m/min |
| Laminating Accuracy | ±1 mm | ±1 mm |
| Machine Dimensions | 16,500 × 2,310 × 2,570 mm | 16,500 × 2,610 × 2,570 mm |
| Installed Power | 45 kW | 48 kW |
| Approximate Weight | 10,000 kg | 11,000 kg |
| Suitable Materials | Paperboard and A, B, C, E, F, N flute corrugated board | |
| Laminating Combinations | Paperboard + Corrugated Board, Paperboard + Paperboard, Corrugated Board + Corrugated Board, and Three-Layer Lamination | |
Actual production speed may vary depending on sheet size, paper quality, flute type, glue condition and operating conditions.

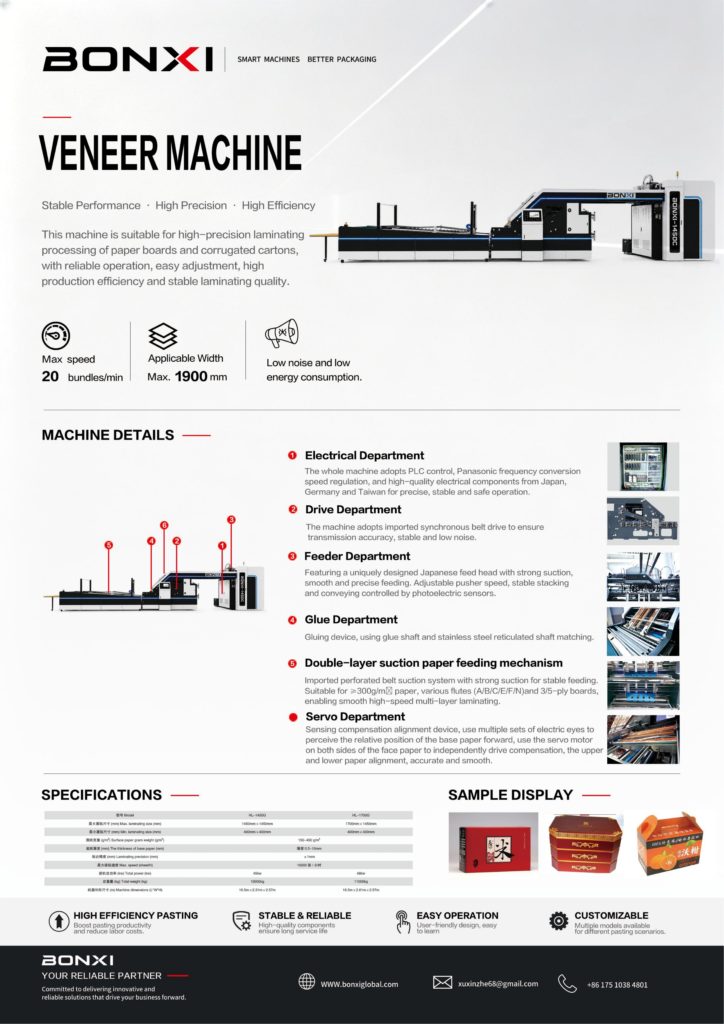

Machine Structure
The machine consists of intelligent feeding, precise alignment, glue coating and laminating units to ensure stable and accurate high-speed production.

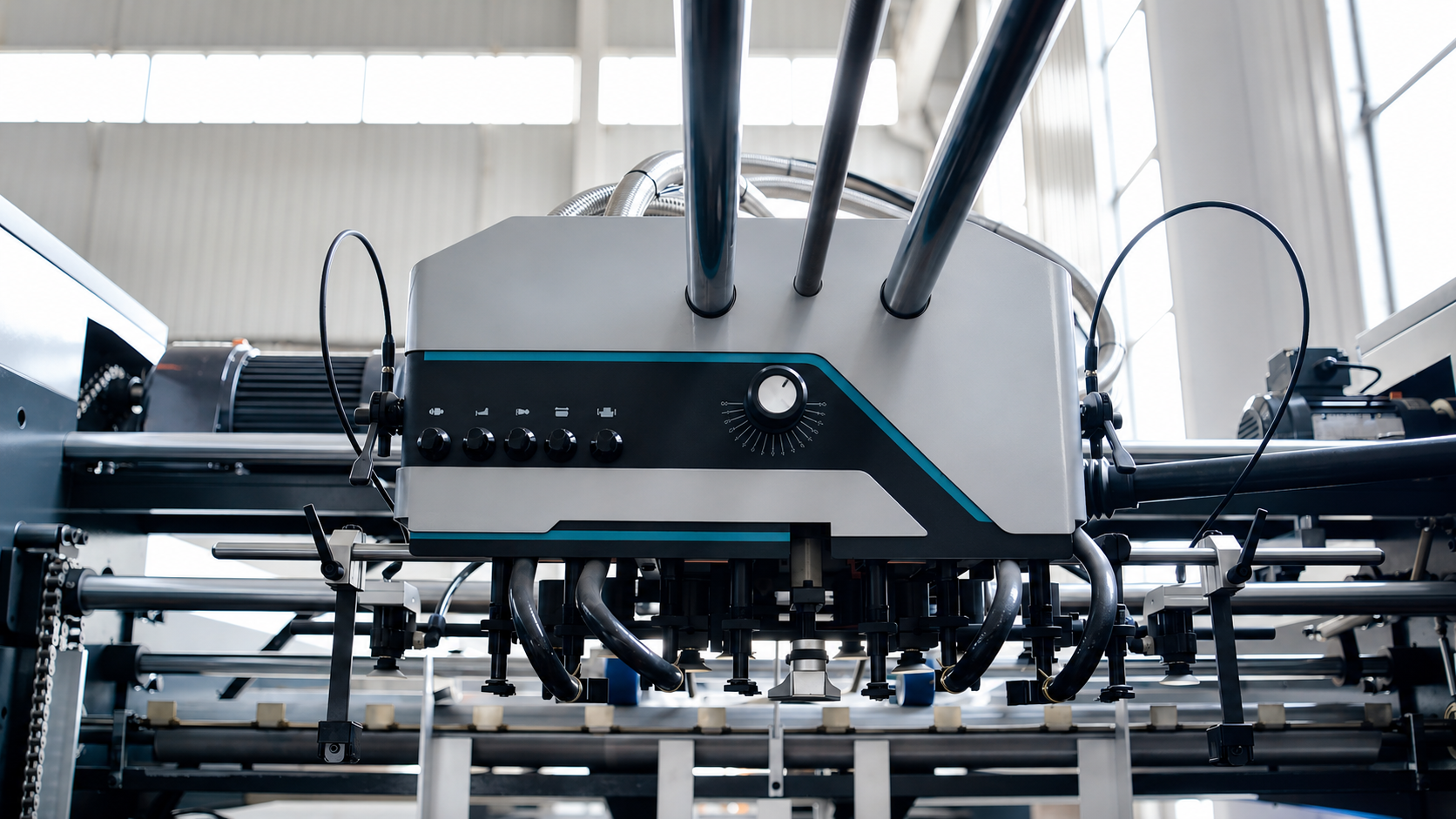

01. Top Sheet Feeding Unit
- The Japanese-design feeder head provides strong vacuum suction for smooth and stable paper feeding.
- The feeding speed and paper stack height can be automatically controlled to ensure continuous operation.

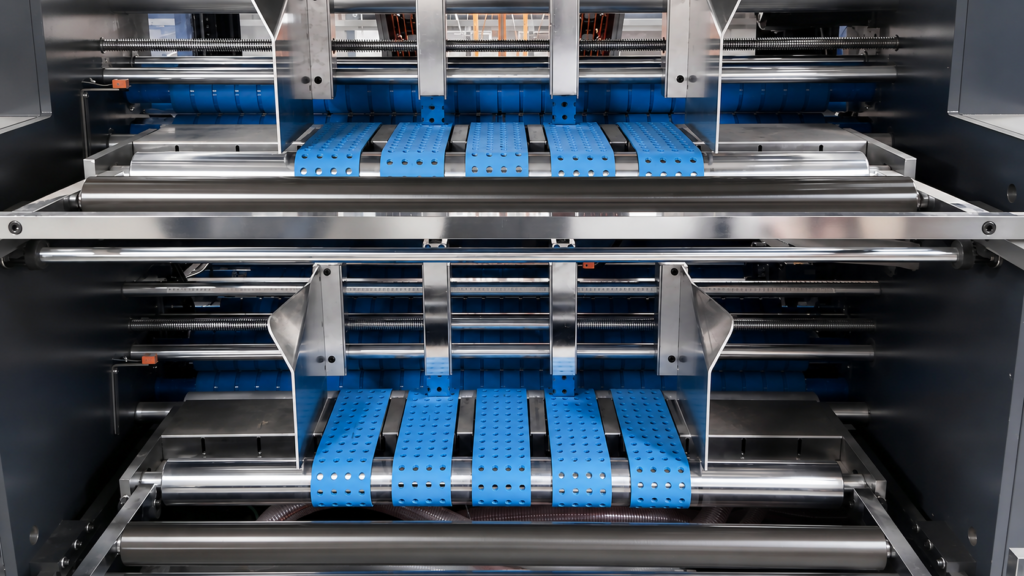

02. Bottom Sheet Feeding Unit
- The double-layer vacuum suction feeding system provides strong holding force and accurate sheet transportation.
- It supports various materials including paperboard and A, B, C, E, F and N flute corrugated board.

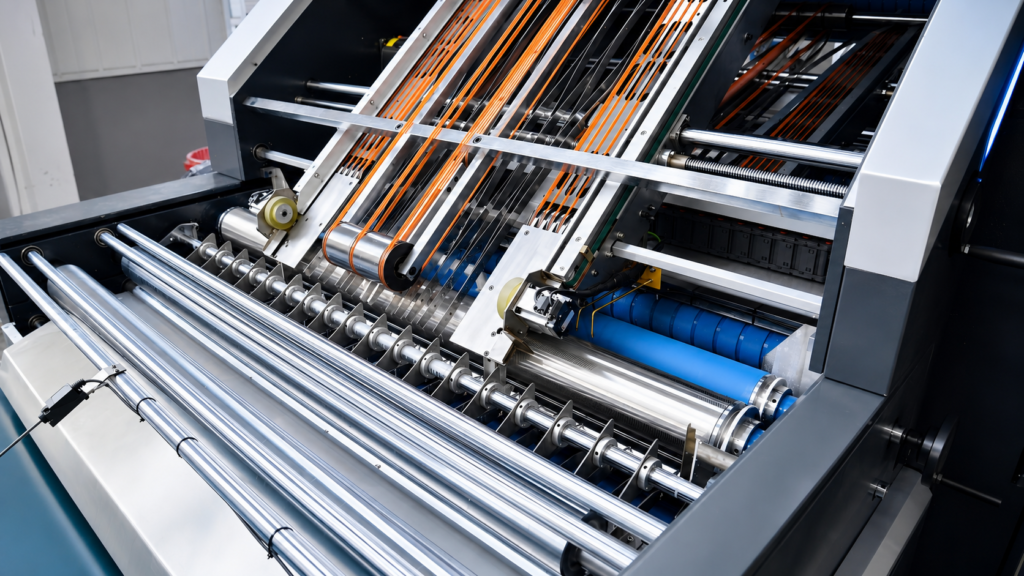

03. Glue Coating System
- High precision glue roller and stainless steel anilox roller provide uniform glue coating.
- The automatic glue level control system reduces glue overflow and material waste.

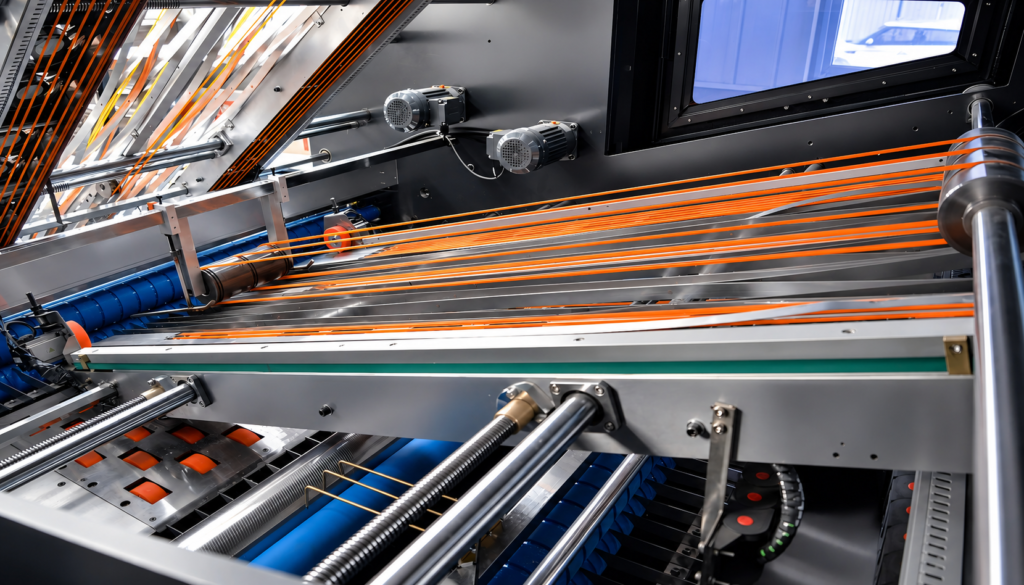

04. Servo Alignment Unit
- Multiple photoelectric sensors detect sheet position and servo motors automatically compensate deviation.
- The system ensures accurate top and bottom sheet alignment during high-speed production.

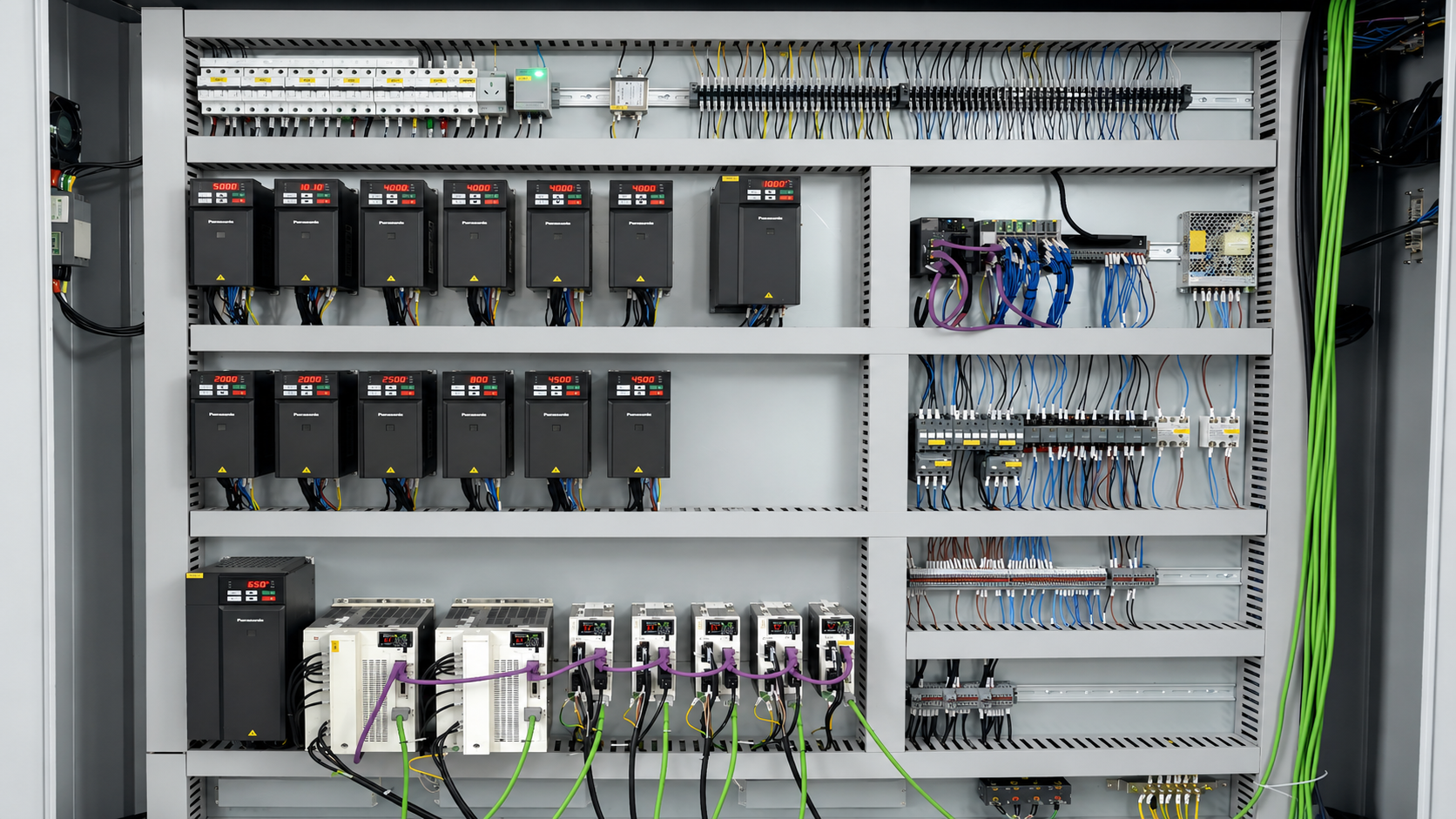

05. Intelligent Control System
- PLC and HMI control system allows easy operation, production monitoring and fault detection.
- Imported electrical components ensure stable performance and long service life.
