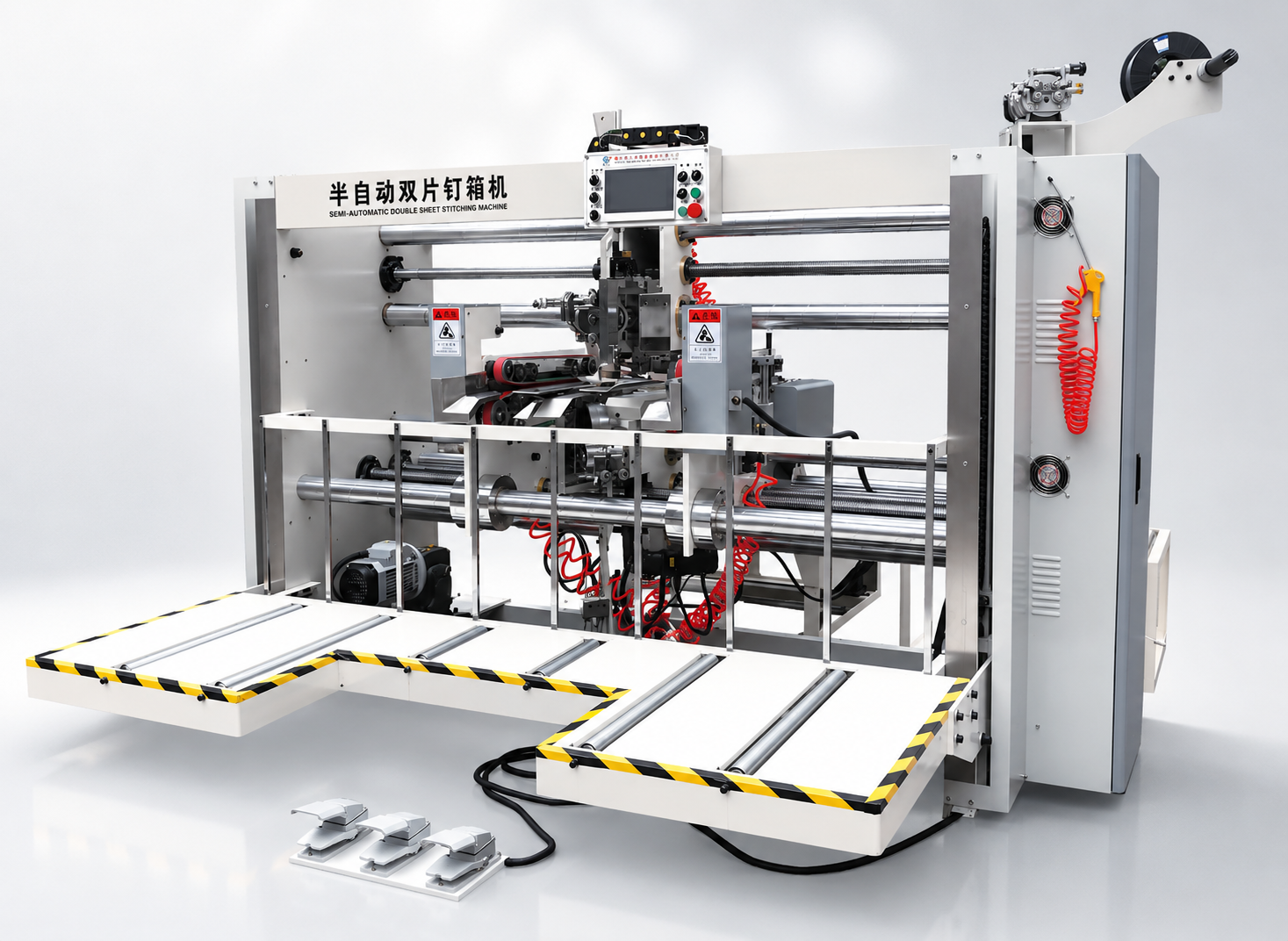

Two-Piece Carton Stitching Machine
The BONXI-1800 semi automatic stitching machine is designed for carton manufacturers requiring flexible and efficient carton stitching. It can stitch single-piece cartons, two-piece cartons, irregular cartons and large cartons with or without covers.
Equipped with servo control system, automatic nail distance adjustment and touch screen operation, the machine provides stable performance, easy operation and high production efficiency.
Key Features
Single & Two-Piece Carton Stitching
Supports single-piece cartons, two-piece cartons and irregular carton stitching. Suitable for various carton production requirements.
Servo Control System
Equipped with servo motors and PLC control system, ensuring accurate nail positioning and stable operation.
Automatic Nail Distance Adjustment
Nail distance, nail quantity and nail type can be adjusted through the touch screen, making size change fast and convenient.
Labor Saving & Easy Operation
Only two operators are required from semi-finished carton feeding to finished carton collection, reducing labor cost.
Technical Parameters
| Model | BONXI-1800 |
| Machine Type | Semi Automatic Two-Piece Carton Stitching Machine |
| Applicable Carton | Single piece, two-piece and irregular cartons |
| Max Stitching Width | 1800 mm |
| Control System | PLC + Touch Screen |
| Servo System | 4 Servo Motors |
| Nail Adjustment | Automatic adjustment through touch screen |
| Counting Function | Automatic counting |
| Applicable Material | 3/5 layer corrugated cardboard |
| Operators Required | 2 operators |
| Machine Weight | Approx. 3000 kg |
| Power Supply | Customized according to customer requirements |
Machine Structure
The BONXI -1800 semi automatic stitching machine consists of stitching unit, servo control system, feeding system, touch screen operation system and carton counting system, providing reliable stitching performance for various carton production.

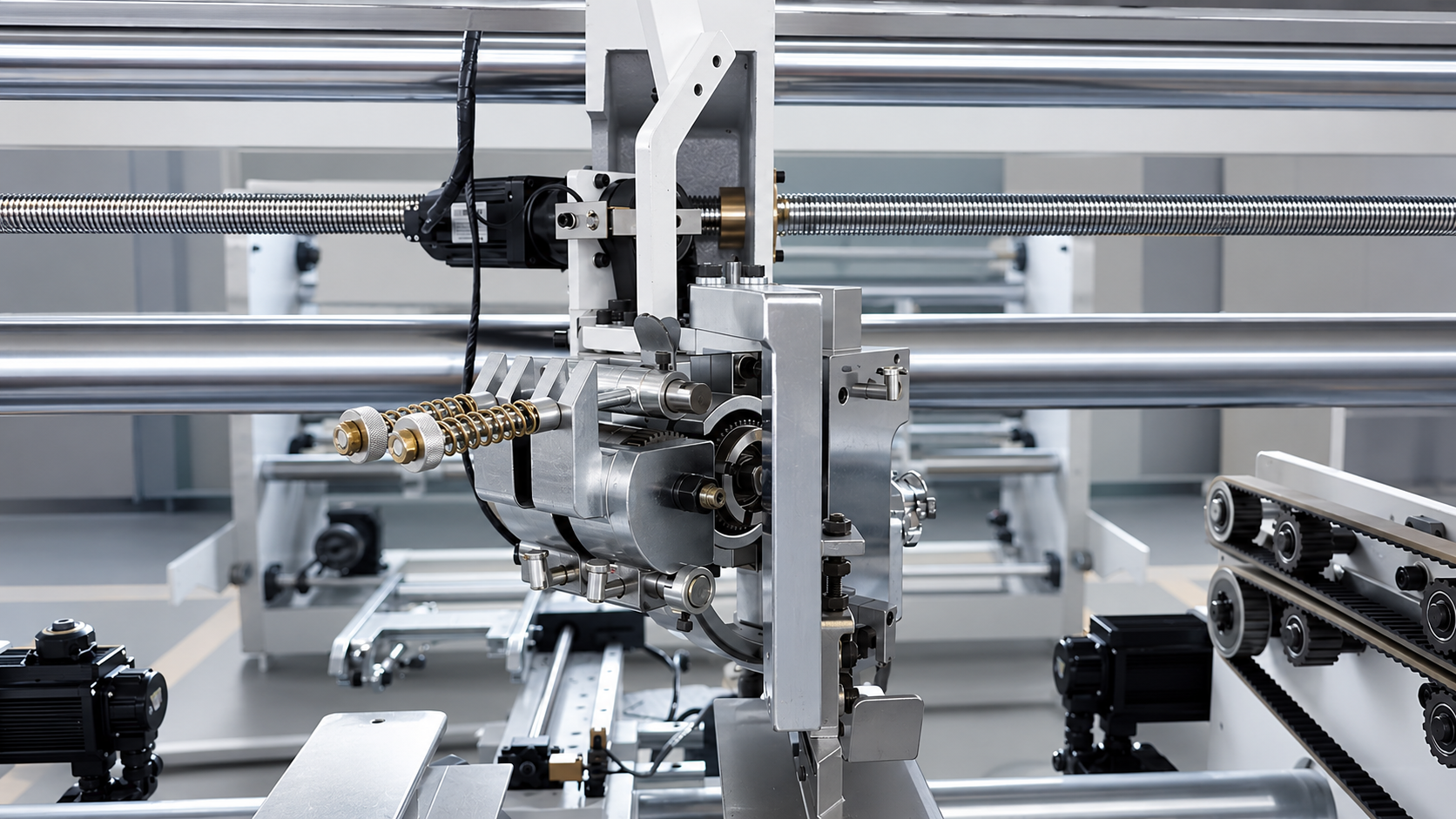

01.Stitching Head
- High strength stitching head with tungsten steel punch and die, providing excellent wear resistance and long service life.

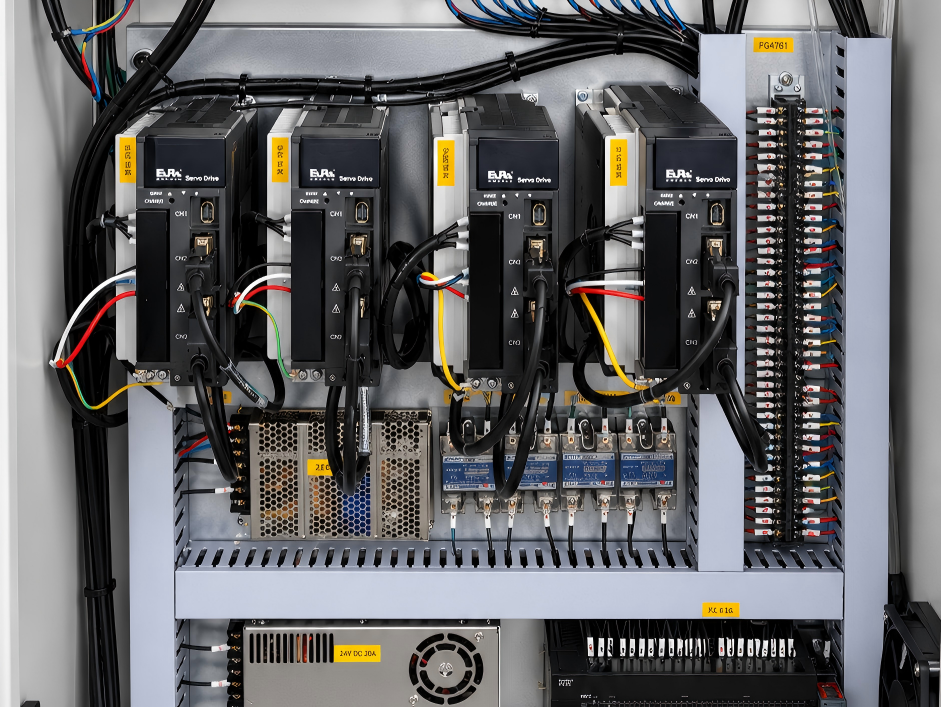

02.Servo Control System
- Four servo motors provide accurate control of stitching position and reduce mechanical transmission errors.

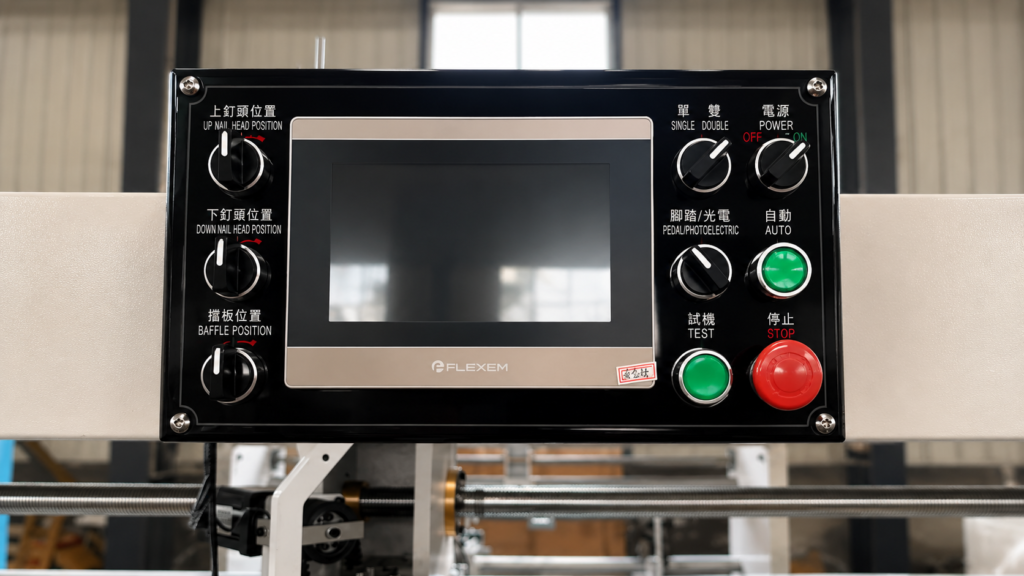

03.Touch Screen Operation
- Intelligent touch screen control allows easy adjustment of nail distance, nail quantity and production parameters.

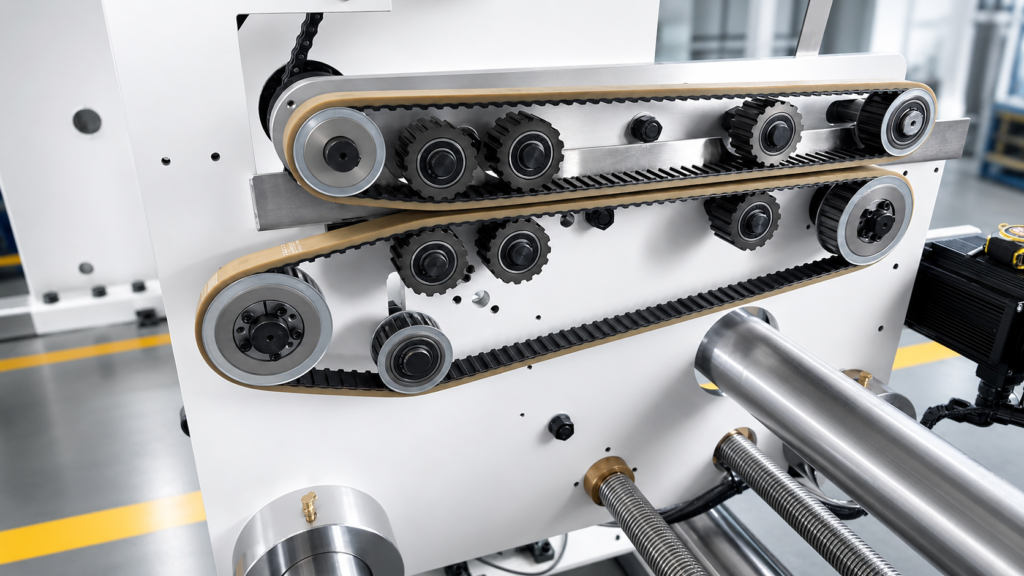

04. Automatic Feeding & Counting
- Automatic feeding and counting system improves production efficiency and simplifies operation.
Applications
The BHX-1800 stitching machine is widely used for:
Corrugated carton factories
Packaging manufacturers
Large size carton production
Heavy duty carton stitching
Industrial packaging solutions
