BONXI 1228 HD 6+1 Flexo Printer Slotter Die Cutter
Product Introduction

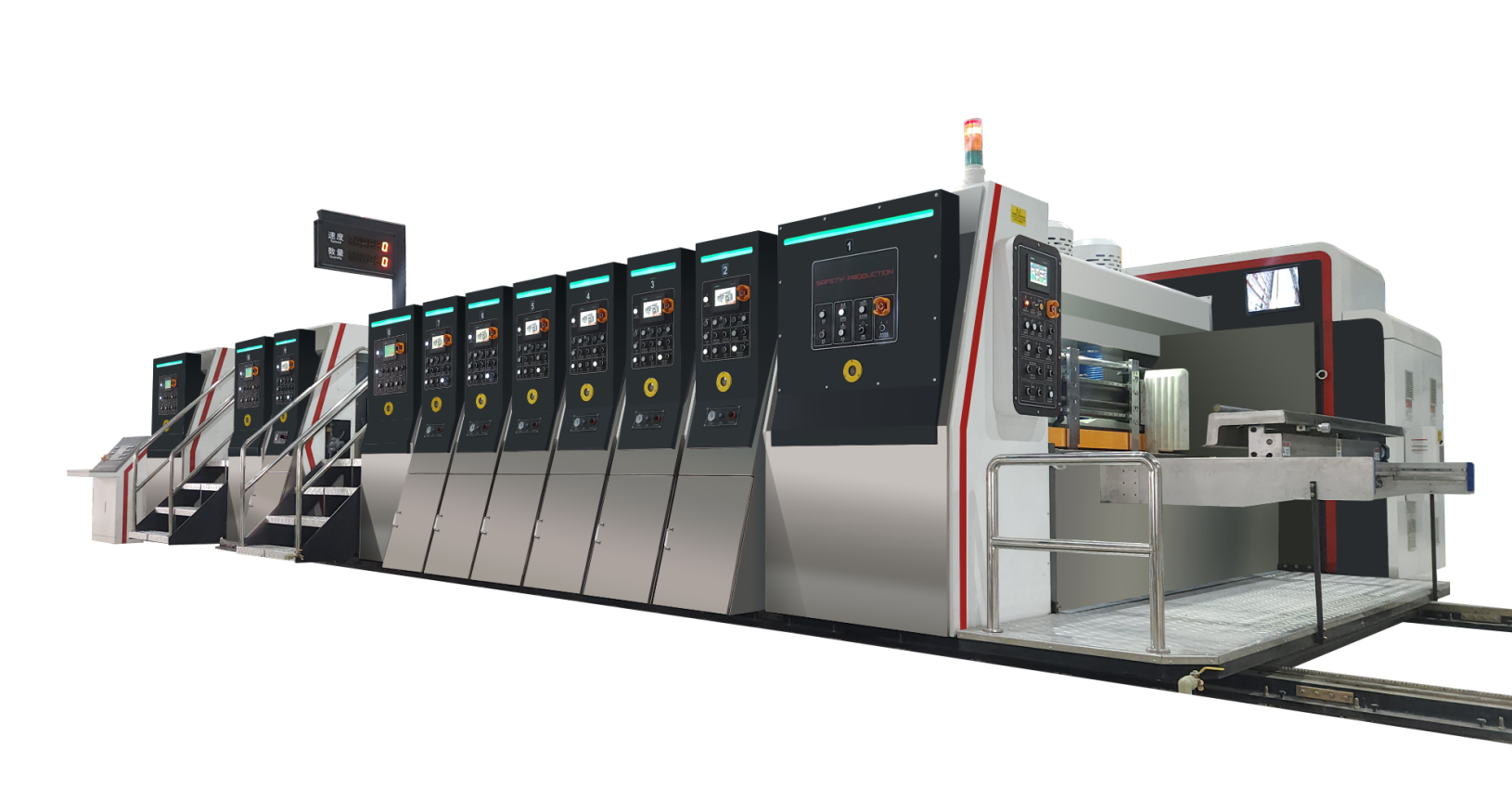

The BONXI 1228 HD 6+1 production line integrates ABB servo no-crush feeding, six-color flexo printing, infrared drying, varnishing, computerized no-die slotting and rotary die cutting in one continuous process.
Designed for 3-ply and 5-ply corrugated board, the machine uses eleven vacuum-transfer sections and centralized Siemens PLC and touchscreen control to support stable high-speed production and faster order changes.
Quick Facts
200 sheets/min
Maximum Mechanical Speed
1200 × 2950 mm
Maximum Feeding Size
6 Colors + 1 Varnish
Printing Configuration
11 Vacuum Sections
Full-Line Board Transfer
Key Features
ABB Servo No-Crush Feeding
The imported ABB servo feeding system works with vacuum lead-edge feeding to reduce board pressure and improve feeding stability.
Six-Color HD Flexo Printing
Six printing units with chamber doctor blades and ceramic anilox rollers support detailed multicolor water-based flexo printing.
Full-Line Vacuum Transfer
Eleven variable-frequency vacuum-transfer sections keep corrugated sheets stable through printing, drying and downstream converting.
Servo Slotting & Die Cutting
Computerized servo positioning integrates pre-creasing, creasing, no-die slotting and rotary die cutting for faster order changes.
Technical Parameters
| Model | 1228 |
|---|---|
| Machine Type | HD 6+1 Vacuum-Transfer Flexo Printer, Dryer, Varnisher, Slotter & Die Cutter |
| Inside Machine Width | 3300 mm |
| Maximum Mechanical Speed | 200 sheets/min |
| Economic Speed for Coated Board | 150–180 sheets/min |
| Hollow / Stone-Plastic Board Speed | 80–120 sheets/min |
| Maximum Feeding Size | 1200 × 2950 mm |
| Minimum Feeding Size | 320 × 650 mm |
| Maximum Printing Size | 1200 × 2800 mm |
| Printing Cylinder Diameter | Ø410 mm |
| Printing Cylinder Length | 2400 mm |
| Standard Printing Plate Thickness | 7.2 mm |
| Supported Board Thickness | 2–12 mm |
| Side Frame Thickness | 60 mm, HT250 cast iron |
| Transmission Gear Thickness | 60 mm |
| Slot Width | 7 mm |
| Maximum Slot Depth | 320 mm |
| Corner-Cutting Width | 50 mm |
| Feeding Registration | ±1.0 mm |
| Printing Registration — Acceptance Basis | First color ≤ ±1.0 mm; subsequent colors ±0.5 mm relative to the first color |
| Slotting Registration — Acceptance Basis | ±1.5 mm |
| Die-Cutting Registration — Acceptance Basis | ±1.0 mm |
| Upper / Lower Die-Cut Cylinder | Ø389 / Ø360 mm |
| Minimum Slotting Combination | 230 / 70 / 230 / 70 mm |
| Minimum Box Height | 50 mm |
| Stacking Height | 1600 mm |
Actual production speed and registration accuracy depend on board material, dimensions, flute type, printing plate, ink, ambient conditions and operating setup. Final specifications are subject to the signed technical agreement.
Line Configuration
| ABB Servo No-Crush Feeding Unit | 1 set |
|---|---|
| Independent Dust-Removal Unit | 1 set |
| Flexo Printing Units | 6 sets |
| Chamber Doctor Blade Systems | 6 sets |
| Ceramic Anilox Rollers | 6 sets |
| Varnishing Unit | 1 set |
| Drying Sections | 4 sets |
| Vacuum-Transfer Sections | 11 sets |
| Servo No-Die Slotting and Die-Cutting Unit | 1 set |
Main Machine Units

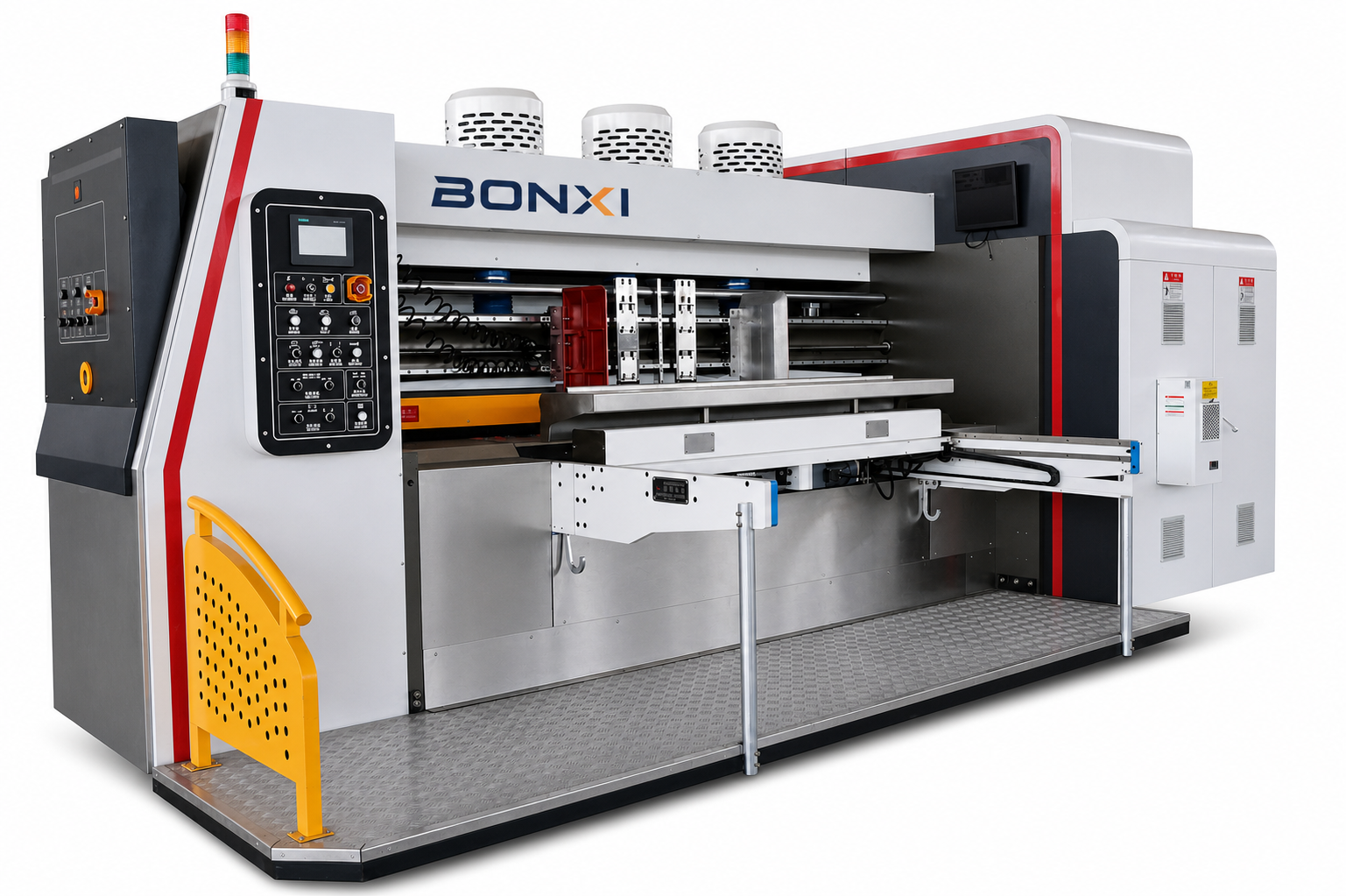

Dust Removal and Servo Feeding
Static elimination, multi-row brushes and air extraction remove paper dust before ABB servo no-crush feeding. Continuous and skip feeding modes are available.

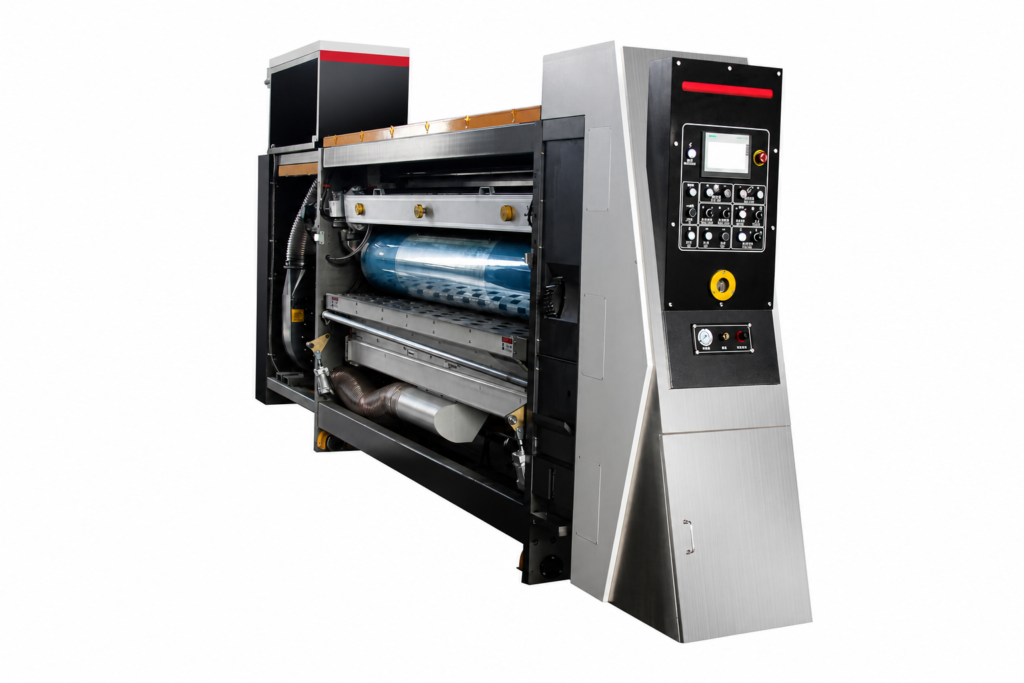

Six-Color HD Flexo Printing
Six printing stations use chamber doctor blades, ceramic anilox rollers, independent ink circulation and digitally controlled printing pressure.

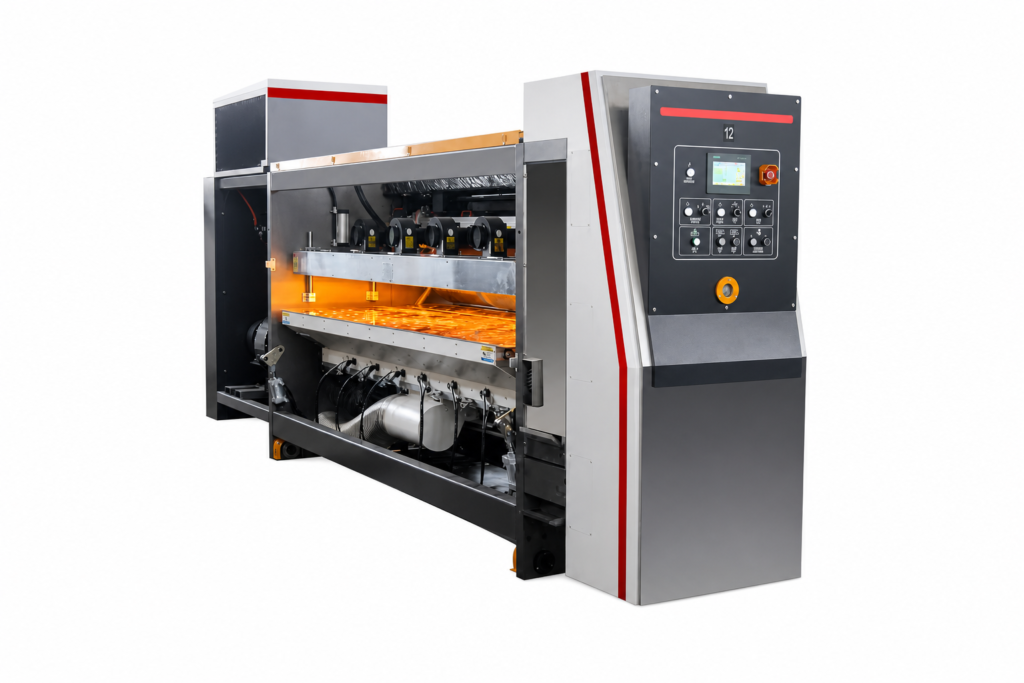

Infrared Drying
Infrared heating temperature is set through the touchscreen. Heating output can follow the main machine speed, with over-temperature and board-jam alarms.

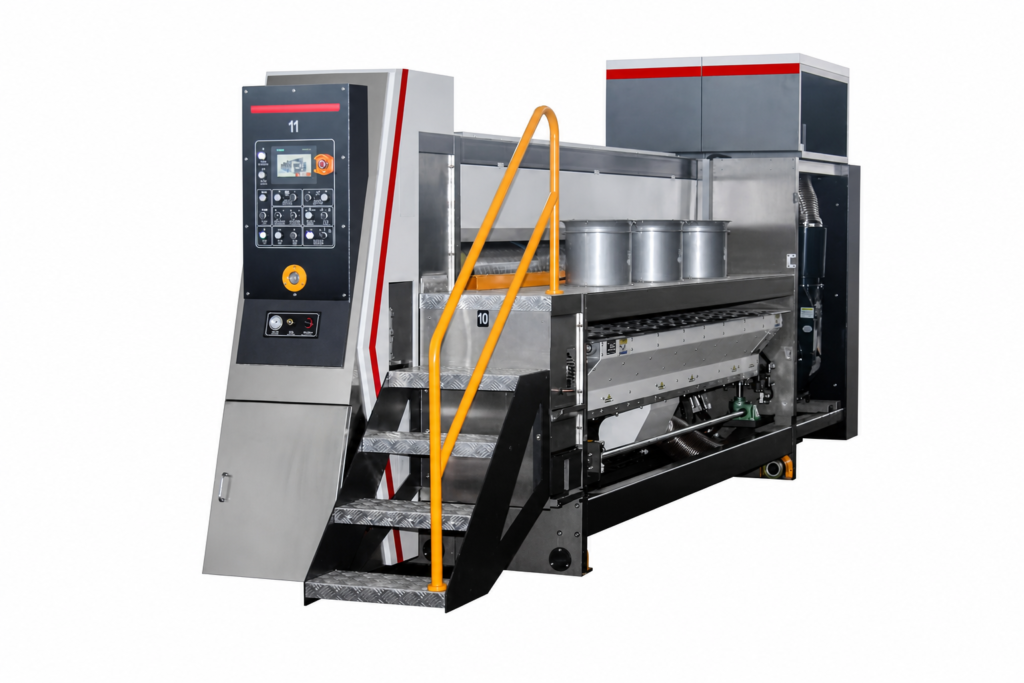

Varnishing and Final Drying
The varnishing unit applies a surface coating, followed by additional drying sections for continuous in-line production.

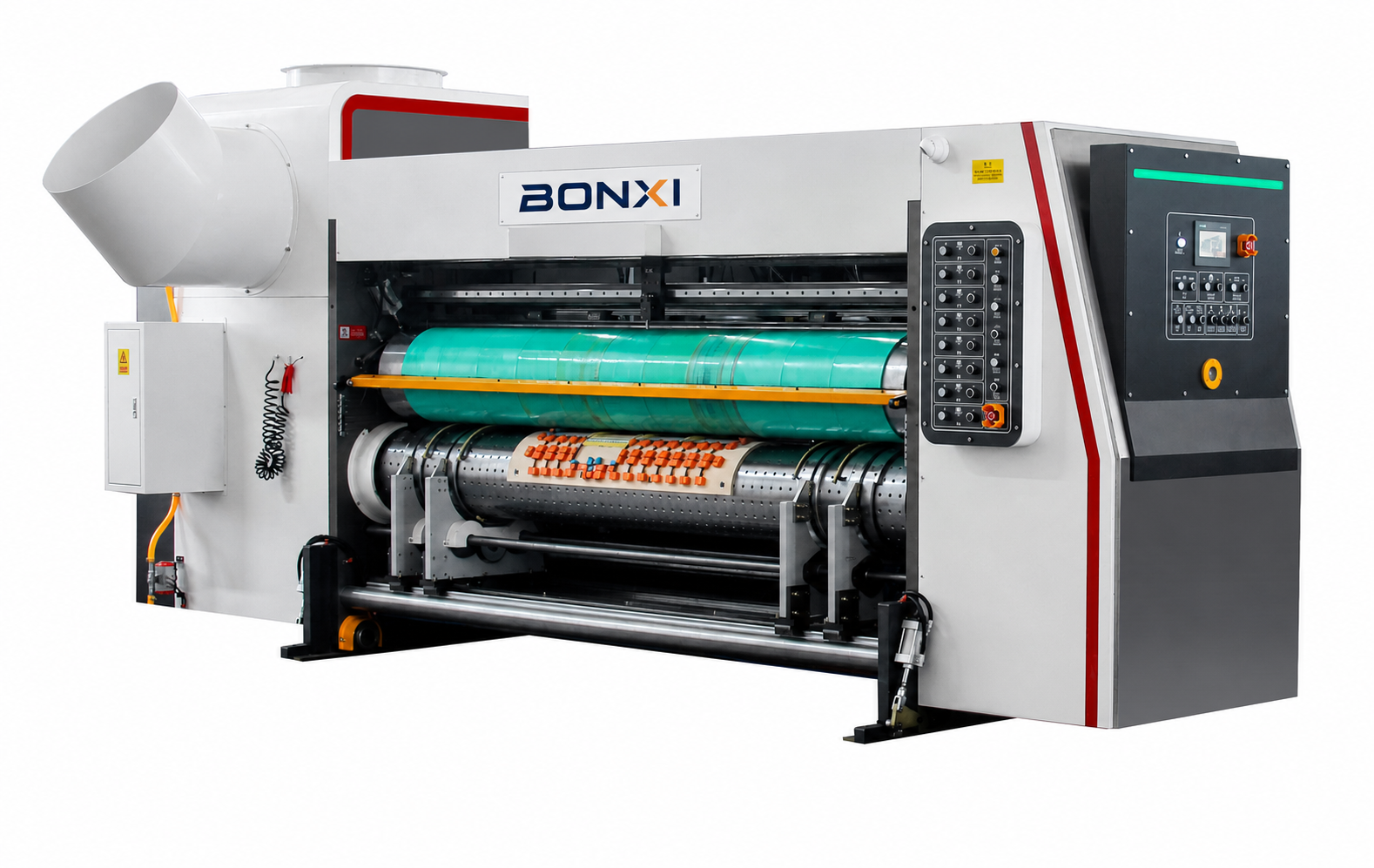

No-Die Slotting and Rotary Die Cutting
Servo-controlled knife positioning integrates heavy pre-creasing, creasing, slotting and rotary die cutting. Box dimensions can be entered through the touchscreen for rapid setup.

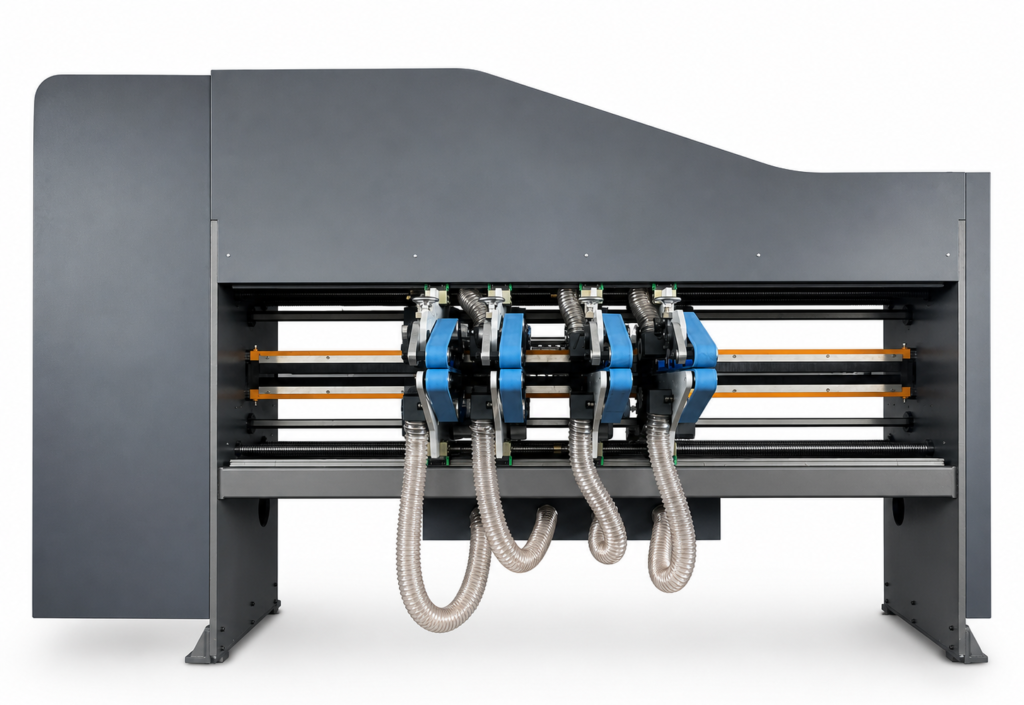

Waste Stripping and Automatic Stacking
Vibration stripping, high-pressure air cleaning and automatic sheet receiving complete the downstream process. Maximum stacking height is 1600 mm.
Selected Components
| Servo Feeding Drive | ABB, Switzerland |
|---|---|
| PLC | Siemens |
| Touchscreen HMI | Siemens |
| Variable-Frequency Drive | Nidec, Japan |
| Encoder | OMRON, Japan |
| AC Contactor / Thermal Relay | Schneider or Siemens |
| Pneumatic Directional Valve | AIRTAC |
| Bearings | NSK / SKF / C&U |
| Belts | Continental, Germany |
| Ceramic Anilox Rollers | Shanghai YC |
| Doctor Blade System | Xingguan, Guangdong |
| Lead-Edge Feeding System | Zhongxin, Guangdong |
| Die-Cutting Anvil Covers | Ludeka |
| Double-Diaphragm Pump | ARO — origin to be confirmed |
Delivery & Service
90
Planned Delivery
Shipment is planned within 90 days after the seller receives the full deposit, subject to the confirmed production schedule.
10–15
Installation & Commissioning
On-site installation and commissioning are estimated at 10–15 working days.
10
Operation & Maintenance Training
Approximately 10 working days of operation and routine-maintenance training are provided after successful commissioning.
12
Warranty Period
The warranty period is 12 months from successful installation and commissioning, excluding electrical parts, cutting tools, misuse and inadequate maintenance.
Technical Note
The specifications shown on this page are based on the standard machine configuration. The final production line layout, electrical component brands, anilox roller specifications, drying system and delivery schedule are subject to the signed technical agreement. Customized configurations are available according to the customer’s production requirements.
