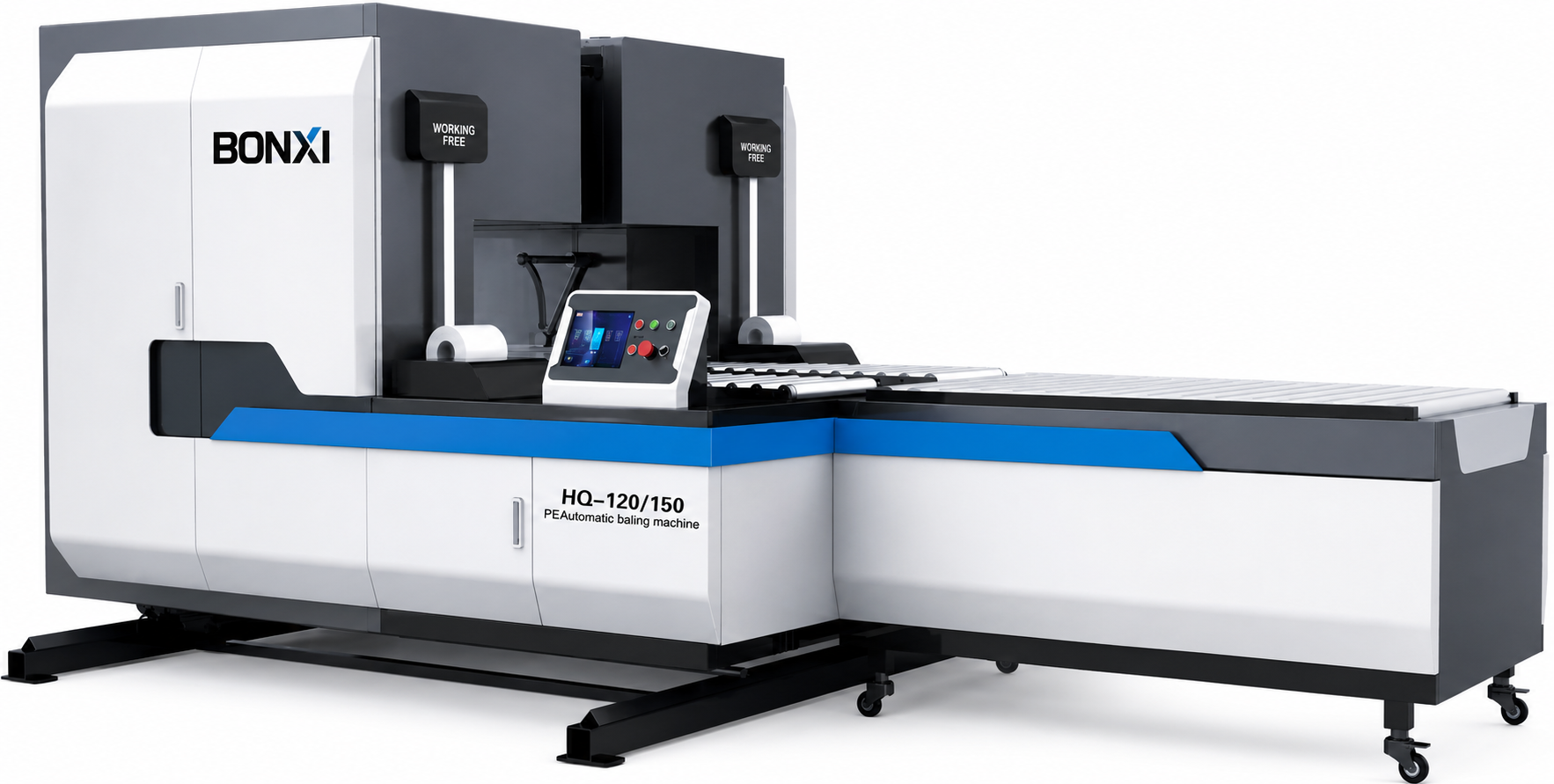

- BONXI automatic double head strapping machine is designed for high-speed carton bundling after carton forming processes.
- With servo-controlled feeding, automatic alignment and dual-head PE strapping technology, it provides stable operation, accurate positioning and lower packaging costs for carton factories.
- It can be connected with automatic folder gluer, folder gluer stitcher and semi-automatic stitching machines.
Key Features
Automatic Double Head Strapping
Dual strapping heads work simultaneously to improve packaging efficiency and ensure balanced carton bundling.
Servo Precision Feeding
Servo motor driven feeding system provides accurate positioning and stable carton transportation.
Lower Packaging Cost
Using PE strapping material reduces packaging cost compared with traditional PP strap.
Easy Operation
PLC control and touchscreen operation make size adjustment and daily maintenance simple.
Technical Parameters
| Parameter | Specification |
|---|---|
| Machine Model | 1200 / 1500 |
| Machine Dimensions | 2600 × 3000 × 2100 mm (L × W × H) |
| Total Power | 7.0 kW |
| Power Supply | 380V / 50Hz |
| Strapping Size | L(380-1500) × W(280-1200) × H(80-280) mm |
| Strapping Speed | 18-20 bundles/min |
| Economic Speed | 15-17 bundles/min |
| Working Air Pressure | 0.6 MPa |
| Strapping Material | PE28# Strap |
| Table Height | 850 mm |
| Machine Weight | 2.0-2.6 Tons |
| Control System | PLC + Touch Screen |
| Application | Carton Bundling and Packaging Production Line |
Machine Structure
The automatic double head strapping machine consists of feeding, alignment, strapping and control units. The servo-driven system ensures stable carton transportation and accurate packaging during continuous production.
01. Carton Feeding Unit
- The stainless steel roller conveyor reduces friction during carton transportation.
- The servo-driven push system provides fast and accurate carton positioning before strapping.

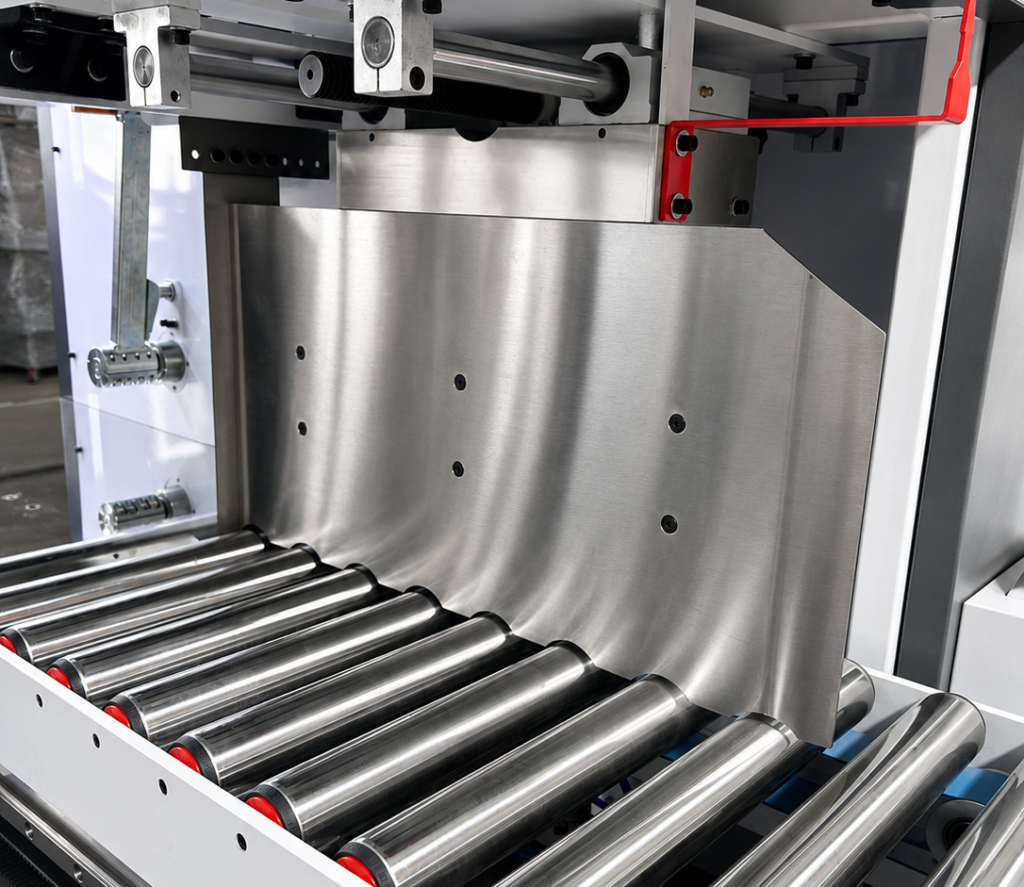

02. Automatic Alignment Unit
Left and right alignment units automatically adjust according to carton size.
The system ensures cartons are neatly positioned before the strapping process.

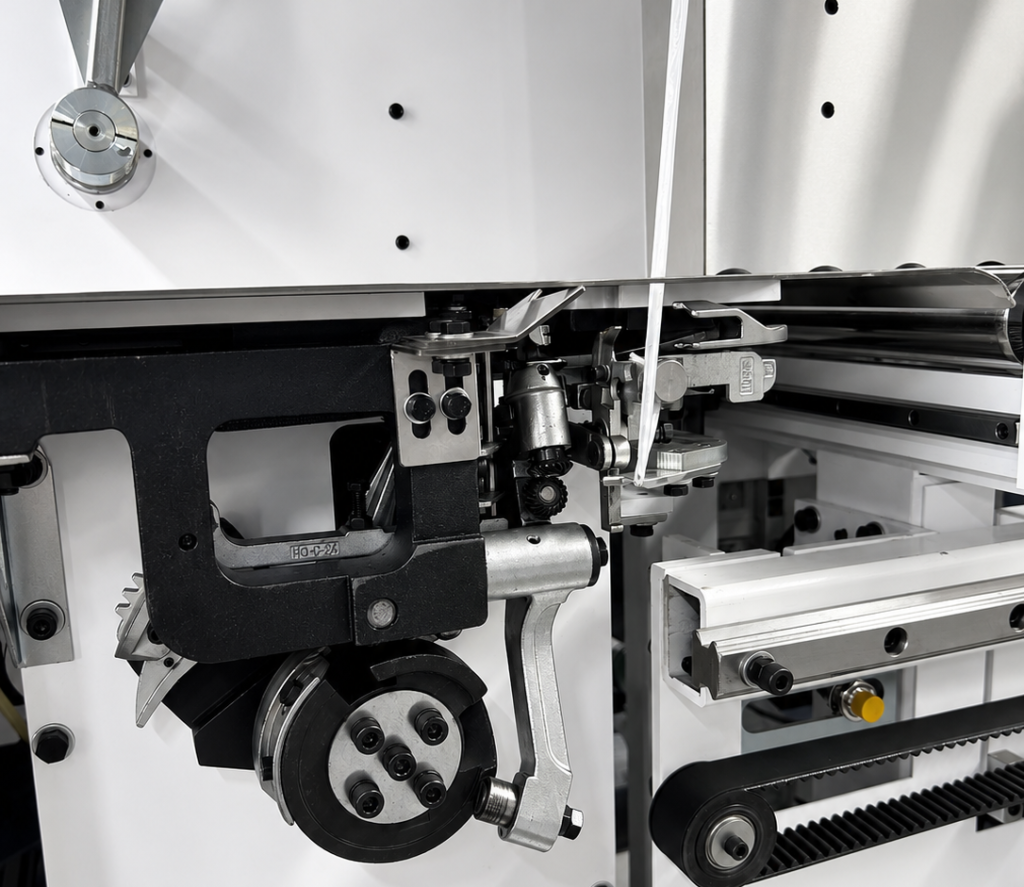

03. Double Head Strapping Unit
- Two strapping heads work simultaneously to create double PE strap loops.
The system provides stable bundling performance and improves production efficiency.

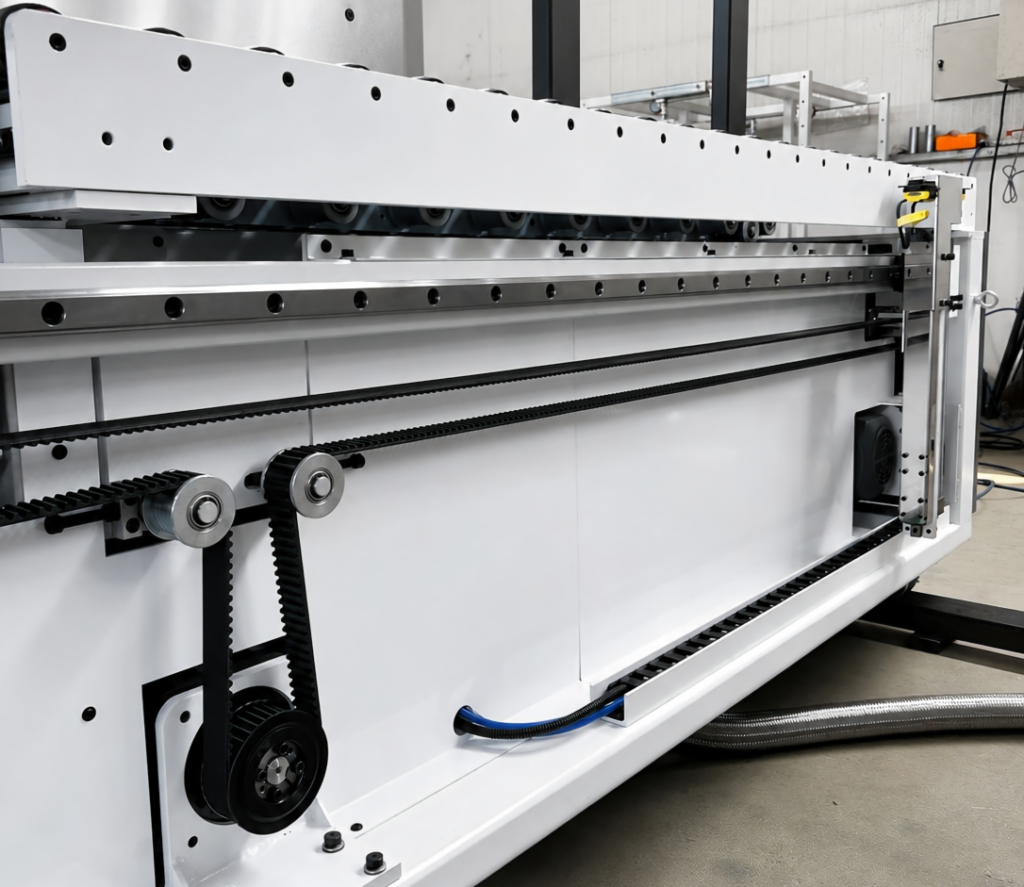

04. Servo Feeding System
- The servo motor drives the push mechanism through synchronous belt transmission.
- It provides high-speed operation with accurate positioning and smooth movement.
