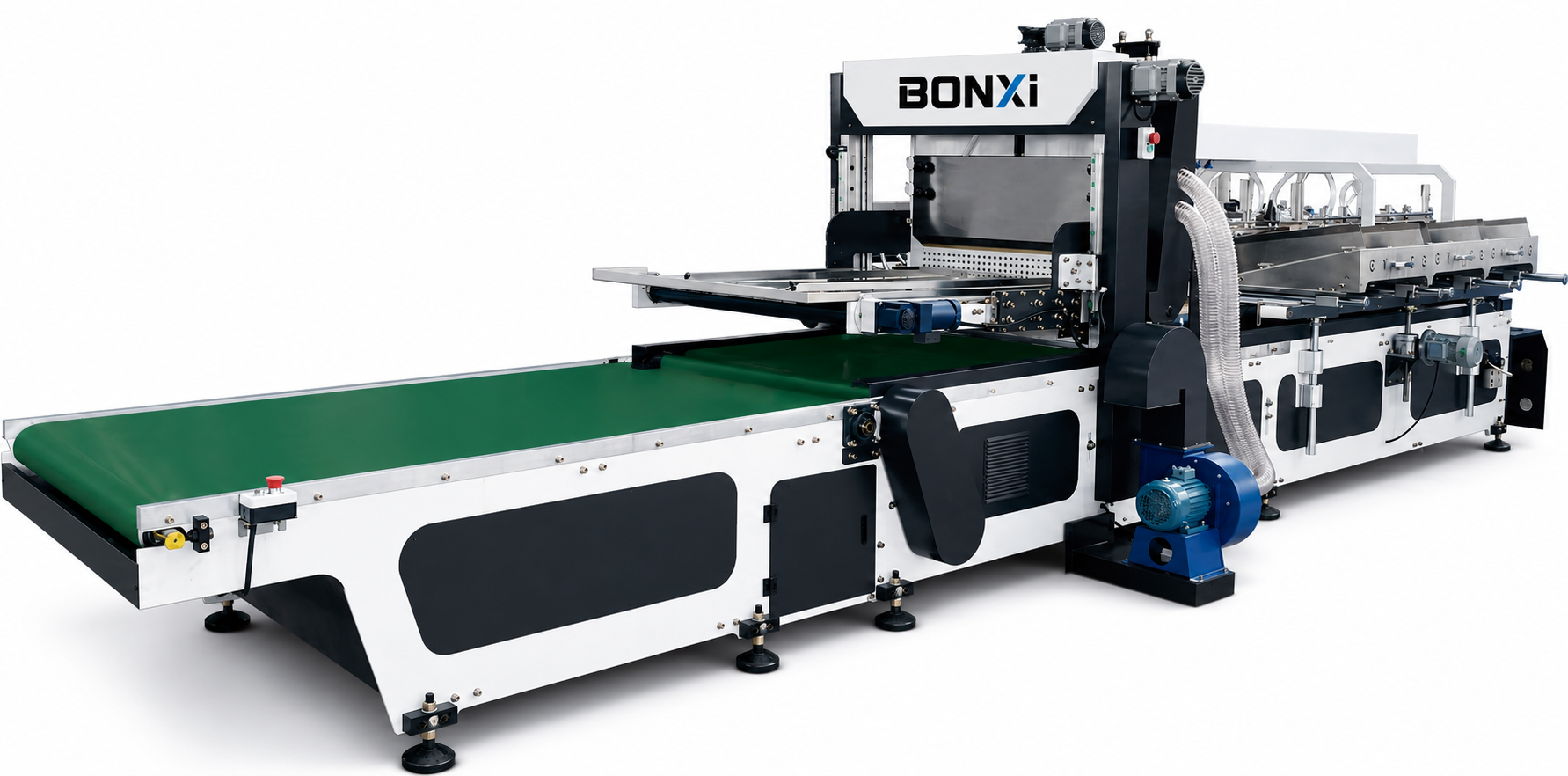

CGJ450-3L Automatic Partition Assembling Machine
- The CGJ450-3L automatic partition assembling machine is designed for carton manufacturers requiring efficient divider and partition production.
- It adopts cross assembling technology with double-station output, allowing automatic insertion of longitudinal and transverse partitions. The machine replaces manual operation, improves production efficiency and provides stable partition assembling quality.
Key Features
Cross Partition Assembly
Longitudinal and transverse partitions are assembled simultaneously with cross insertion technology.
Double Station Output
Double-station output improves production efficiency and reduces manual operation.
Servo Control System
Equipped with PLC, HMI and servo control system for accurate and stable operation.
Flexible Partition Production
Suitable for various carton partitions, dividers and baffle boards with customized specifications.
Technical Parameters
| Model | CGJ450-3L |
| Machine Type | Automatic Partition Assembling Machine |
| Assembly Method | Cross Assembling, Double Station Output |
| Transverse Assembly Width | Double station: 80-420 mm / Single station: 80-900 mm |
| Lengthways Partition Length | 210-450 mm |
| Partition Height | 70-300 mm |
| Transverse Partition Distance | 20-400 mm |
| Lengthways Partition Distance | 45-800 mm |
| Lengthways Sheets Quantity | 1-6 sheets |
| Horizontal Partition Quantity | 1-21 sheets |
| Board Thickness | 1.5-8 mm |
| Total Power | 6.8 KW |
| Machine Dimension | 6300 × 2000 × 1900 mm |
| Air Pressure | 0.4-0.8 Mpa |
| Air Consumption | 650 L/min |
Machine Structure
The CGJ450-3L consists of a partition board feeding unit, cross-assembly mechanism, PLC/HMI servo control system and dual-station output section.

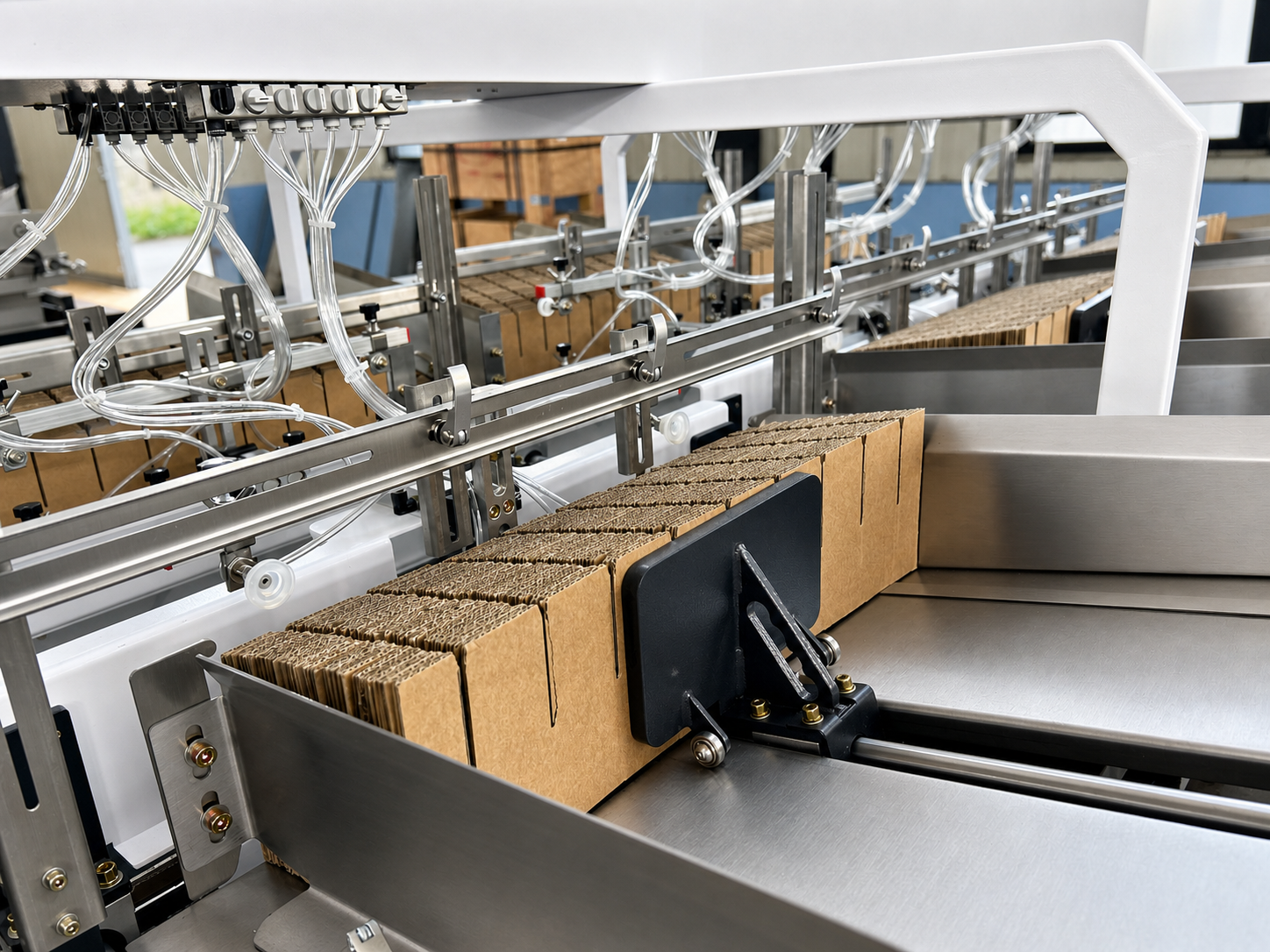

01. Feeding Unit
- Stable feeding system ensures continuous partition board supply during production.

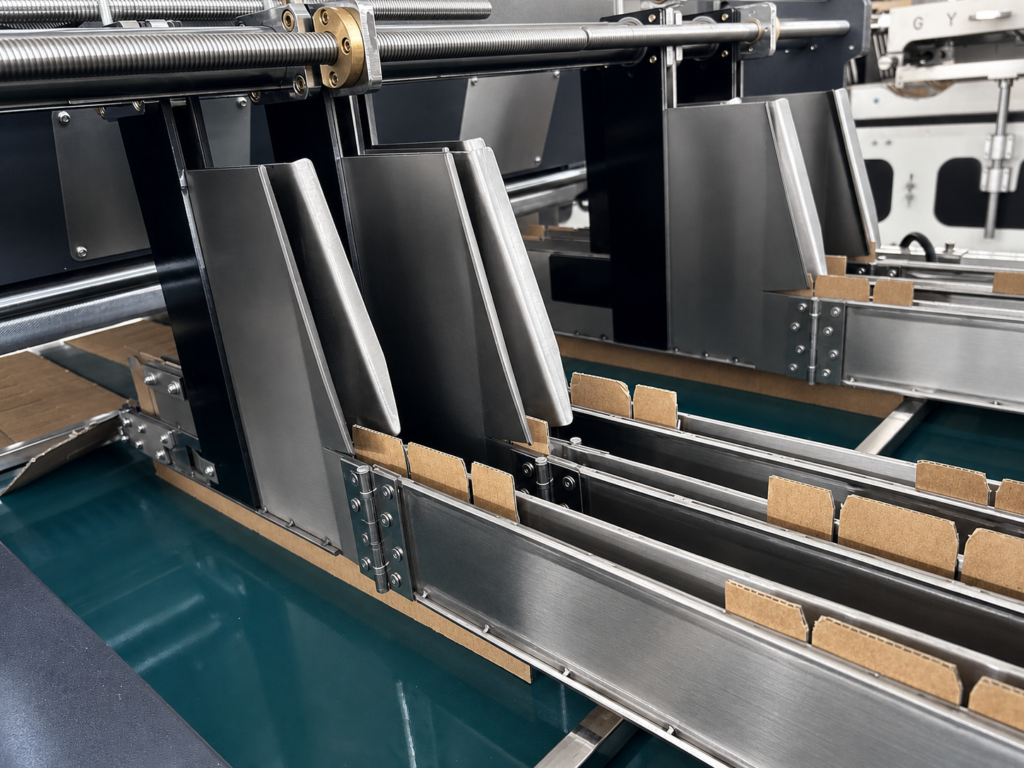

02.Cross Assembly System
- Longitudinal and transverse boards are assembled simultaneously to achieve automatic cross insertion.

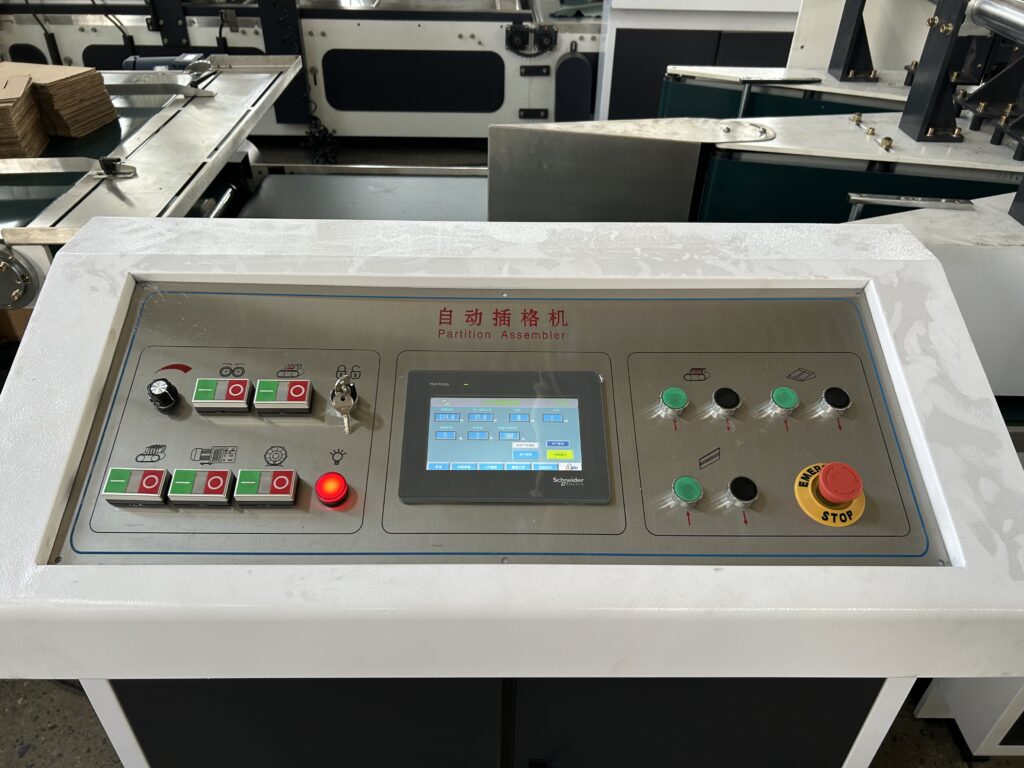

03. PLC, HMI & Servo Control
- PLC, HMI and servo control system provide accurate operation and stable performance.

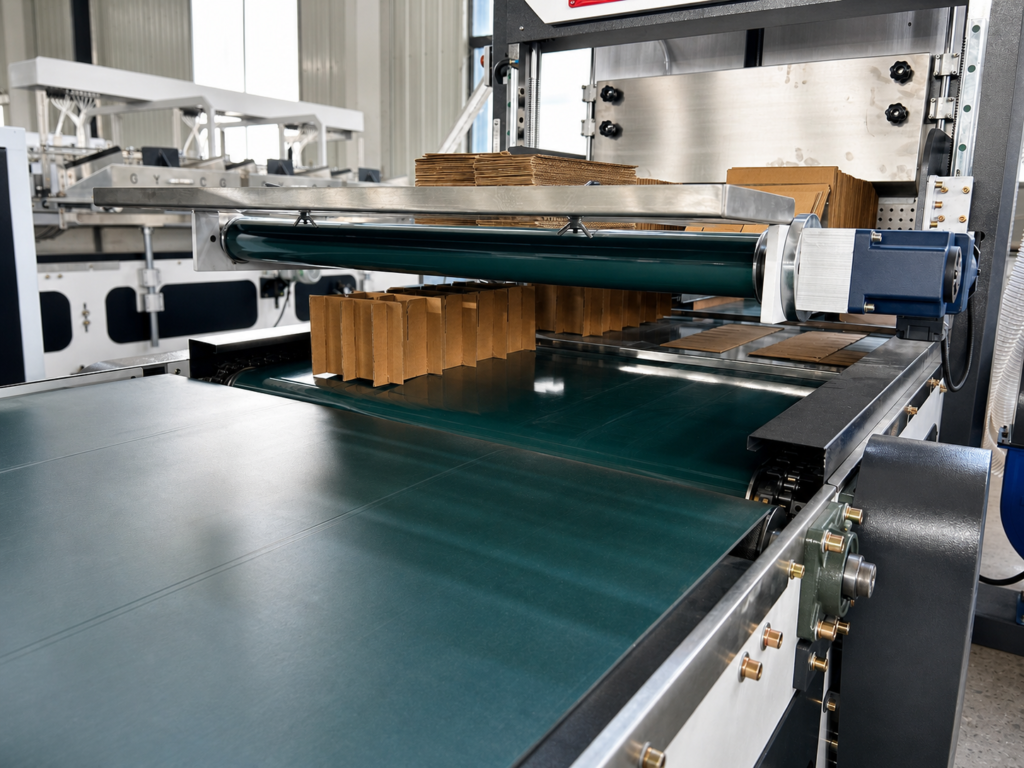

04. Double Station Output
- Double-station output improves production efficiency and replaces traditional manual assembling.
05. Applications
The CGJ450-3L automatic partition assembling machine is widely used for:
– Corrugated carton manufacturers
– Packaging factories
– Carton divider production
– Beverage packaging
– Food packaging
– Electronic product packaging
– Industrial packaging
