BONXI-1120 Fully Automatic Thermal Film Laminating Machine for Paperboard
Fully Automatic Thermal Film Laminating Machine for Paperboard
-

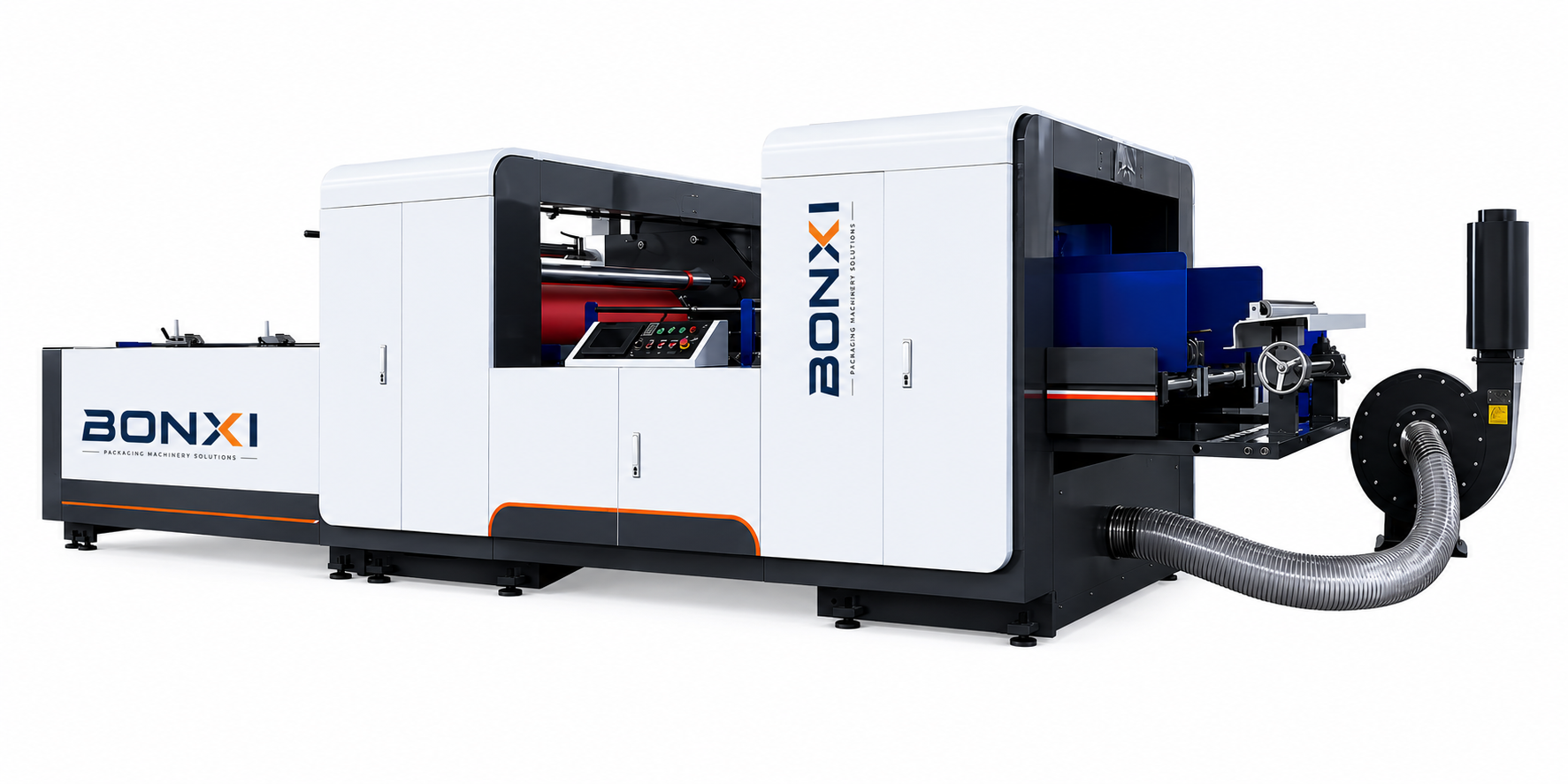

The BONXI-1120 Fully Automatic Thermal Film Laminating Machine for Paperboard developed for laminating pre-coated film onto paperboard. It integrates automatic board feeding, laminating and film separation into one continuous process.
-
The machine combines mechanical, electrical and pneumatic systems for stable operation, easy adjustment and convenient maintenance.
Key Features
Fully Automatic Workflow
Automatic board feeding, laminating and film separation improve production efficiency and reduce manual handling.
Uniform and Stable Laminating
The large-diameter, high-thermal-conductivity laminating roller provides a uniform and stable surface temperature.
Servo and PLC Control
The VFD, PLC, servo system and touchscreen enable accurate speed and pressure adjustment, direct size input and stable operation.
Clean Film Separation
The independent differential-wheel separation system minimizes the remaining film tail and helps prevent damage to corrugated board.
Technical Parameters
| Model | YDWL-1120 |
| Machine Type | Fully Automatic Pre-coated Film Paperboard Laminating Machine |
| Maximum Board Width | 1050 mm |
| Laminating Temperature | 100–180°C |
| Mechanical Speed | 0–80 m/min |
| Machine Dimensions | 2200 × 6000 × 1600 mm |
| Total Power | 32 kW |
| Machine Weight | 2800 kg |
Machine Structure
The BONXI-1120 consists of an automatic feeding and board-support system, heating and laminating unit, servo and PLC control system, independent film-separation unit and film-roll lifting device.
01. Automatic Feeding and Board Support Unit
Automatic board feeding provides continuous and efficient production.

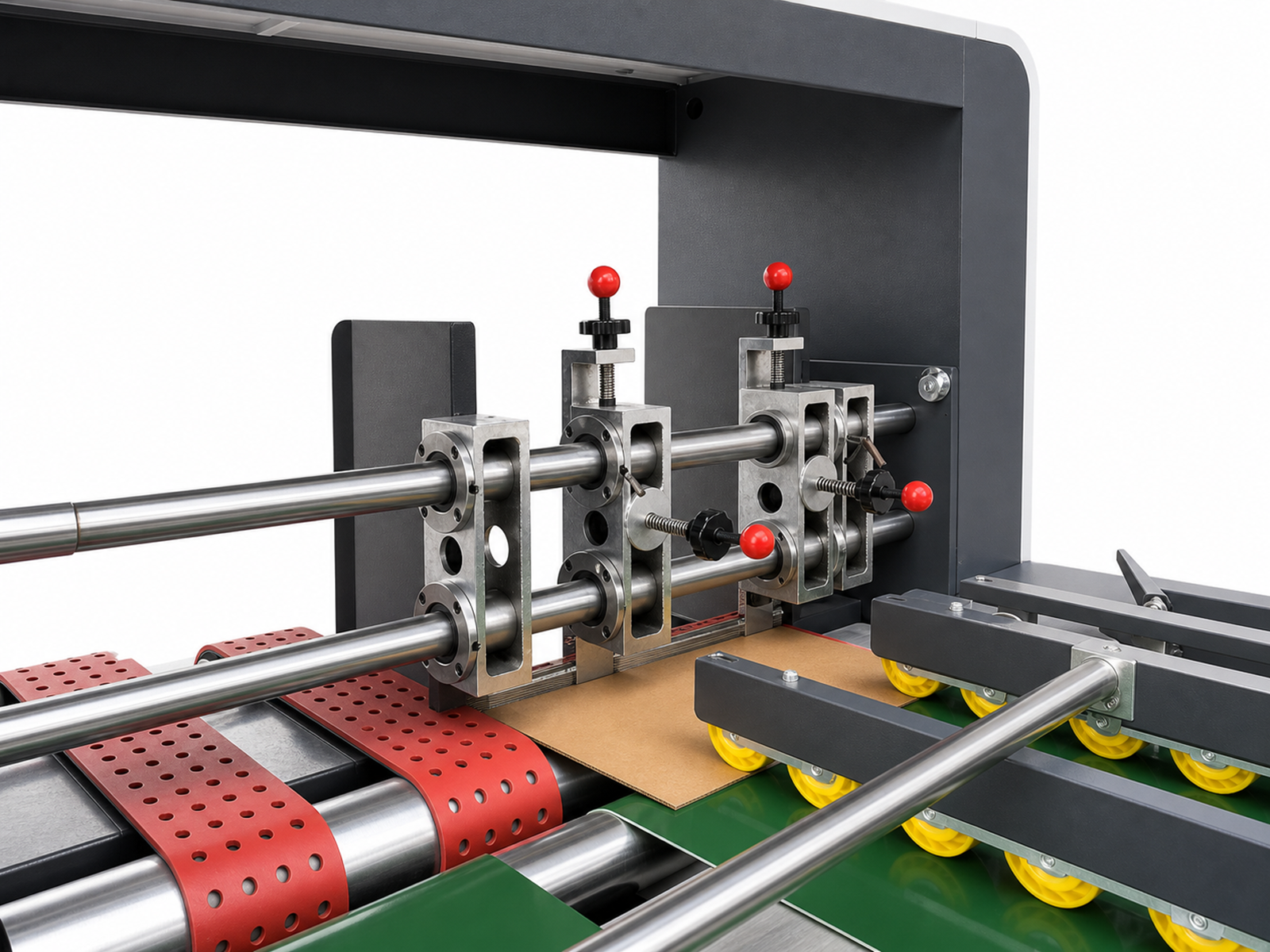

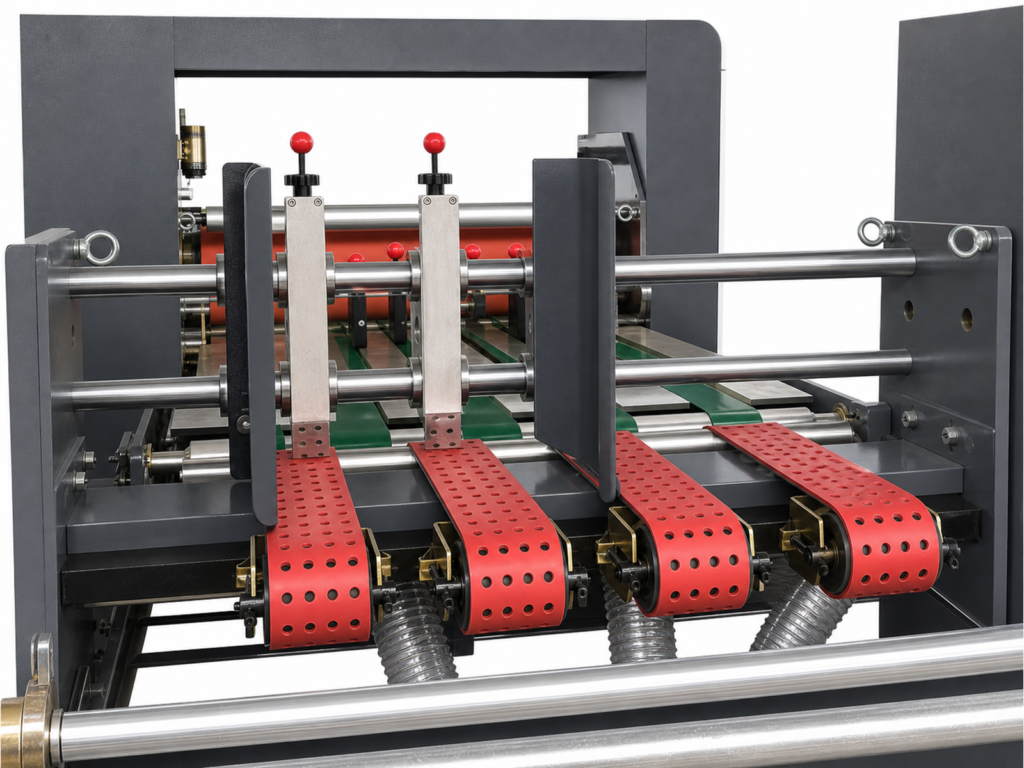

The adjustable board-support structure uses high-precision slide modules and a worm gearbox for smooth adjustment and accurate feeding.
02. Heating and Laminating Unit

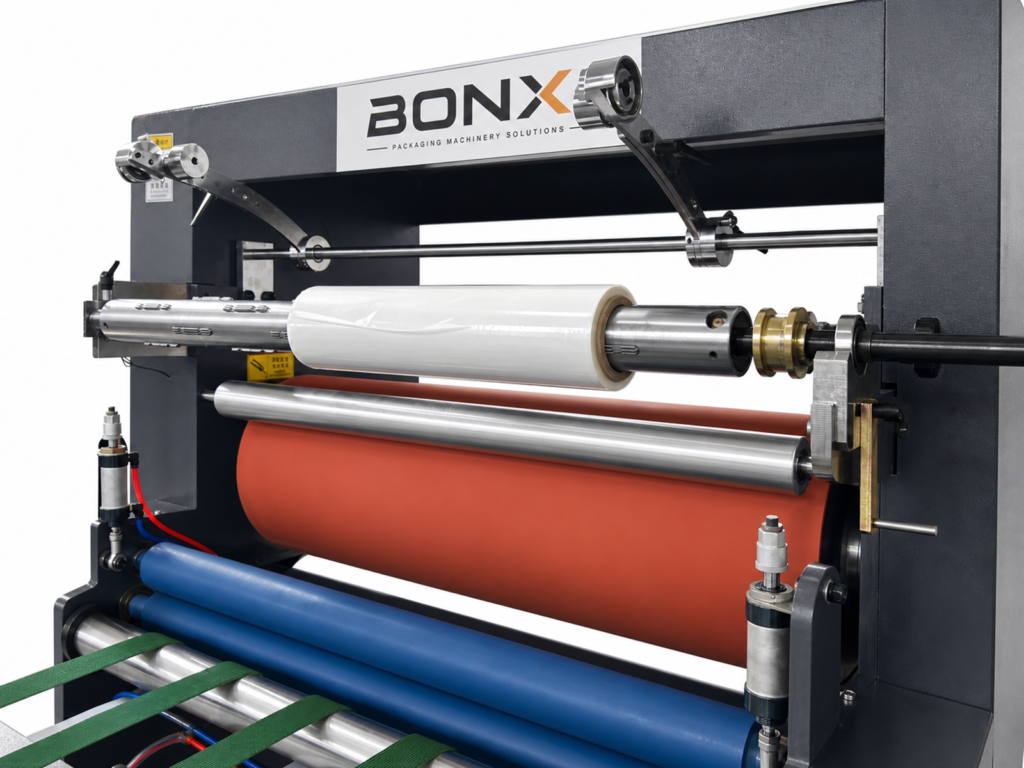

The large-diameter laminating roller provides uniform and stable heating.
A 400 mm heating roller and 235 mm rubber roller support consistent laminating performance.
03. Servo and PLC Control System
The main drive uses variable-frequency speed control, while the PLC enables stable and flexible speed adjustment.
Servo control adjusts the feeding speed according to the overlap length.
The pressure roller can be raised or lowered through servo control, with dimensions entered directly on the touchscreen.
Job-memory and one-touch changeover functions shorten setup time.
04. Film Separation and Roll Lifting System

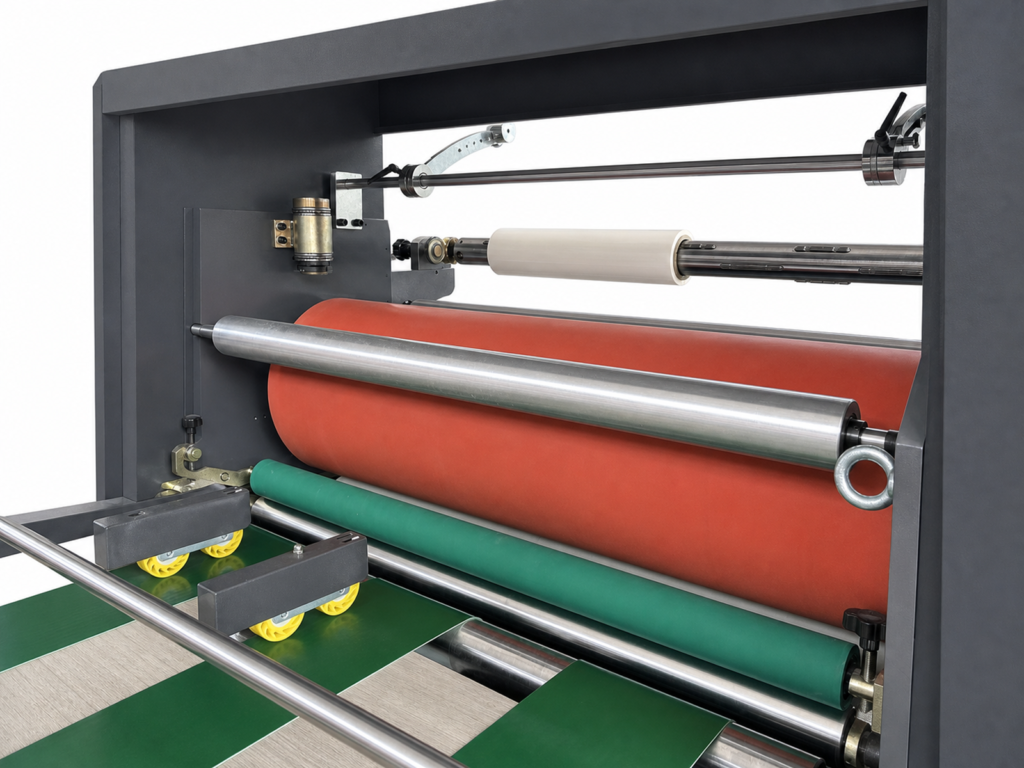

The independent differential-wheel system separates the film with a short remaining tail and helps avoid damage to corrugated board.
The cantilever lifting device enables push-button film-roll loading, saving time and labor.
05. Applications
Suggested applications—confirm with the sales or engineering team:
Pre-coated film lamination for paperboard
Corrugated board surface lamination
Carton and boxboard finishing
Packaging board surface protection and appearance enhancement
