The BONXI NCH-2800 Full Servo Thin Blade Slitter Scorer is designed for accurate slitting and scoring of corrugated board.
Its PLC touchscreen and full servo positioning system enable automatic knife and scorer adjustment with an order changeover time of approximately 1–2 seconds.
Tungsten carbide thin blades, sun-wheel board pressing, pre-scoring and precision scoring help produce smooth cutting edges and clear folding lines.
Key Features
1–2s Fast Changeover
Full servo knife and scorer positioning reduces manual adjustment and completes order changeover in approximately 1–2 seconds.
Servo Front Edge Feeding
The four-row front edge feeding system is independently driven by servo motors for stable and accurate board feeding.
Clean Thin Blade Slitting
Ø200 mm tungsten carbide thin blades provide smooth cutting edges with fewer burrs and less corrugated board crushing.
Accurate Scoring
Pre-scoring and precision scoring create clear folding lines and help reduce cracking during carton folding.
Technical Parameters
| Model | NCH-2800 |
| Machine Type | Full Servo Computerized Thin Blade Slitter Scorer |
| Feeding System | Four-Row Servo Front Edge Feeding |
| Standard Configuration | 4 Slitting Knives and 6 Scoring Wheels |
| Order Changeover Time | Approximately 1–2 Seconds |
| Maximum Slitting Width | 2180 mm with 2 Knives / 2340 mm with 3 Knives / 2500 mm with 4 Knives |
| Minimum Slitting Width | 160 mm |
| Minimum Scoring Distance | 60 mm Line-to-Line / 185 mm Back-to-Back |
| Slitting Blade | Ø200 mm Tungsten Carbide Alloy Thin Blade |
| Control System | PLC and Touchscreen Control |
| Machine Dimensions | 4400 × 1800 × 1900 mm |
| Approximate Weight | 4200 kg |
Machine Structure
The NCH-2800 combines servo front edge feeding, automatic thin blade positioning, sun-wheel board pressing, rubber roller conveying, pre-scoring and precision scoring in one computerized production system.

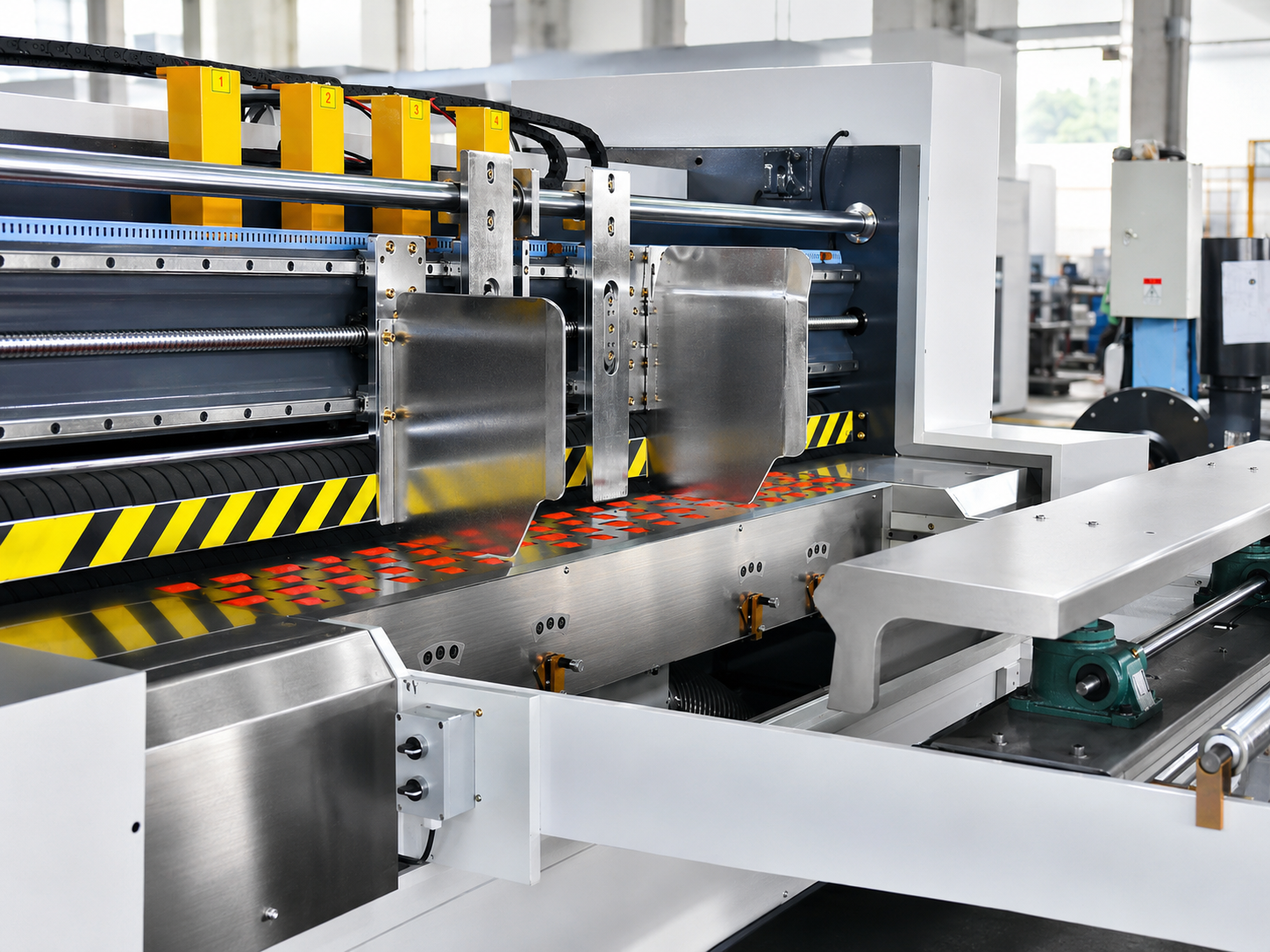

01. Servo Front Edge Feeding Unit
- The four-row front edge feeding system is independently driven by servo motors for accurate and stable corrugated board feeding.
- The side guides are automatically adjusted by servo motors, while the front stop uses synchronized manual lifting adjustment.
- The front feeding support frame can be electrically adjusted for both travelling and lifting.

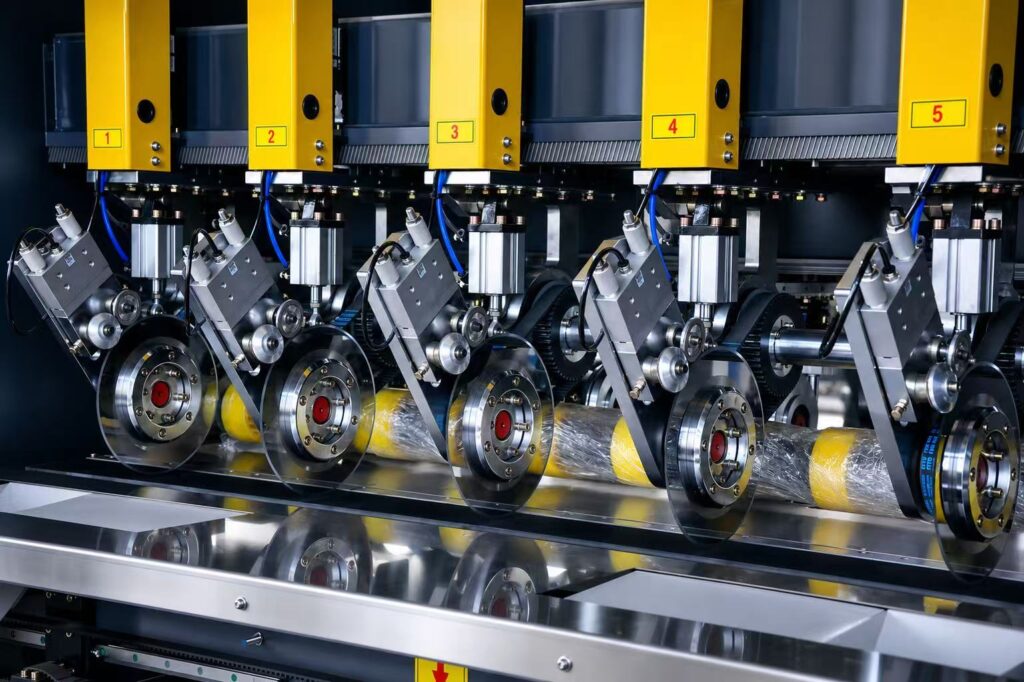

02. Automatic Thin Blade Slitting Unit
- The slitting knives are automatically positioned through a combination of servo motors and rack transmission.
- The lower knife holders move along linear guide rails for smooth and accurate positioning.
- Ø200 mm tungsten carbide alloy blades produce smooth cutting edges with fewer burrs and less board crushing.
- Automatic and manual blade grinding functions help keep the cutting edges sharp during production.
03. Sun-Wheel Board Pressing Unit
- The sun-wheel pressing system holds the corrugated board steadily during the slitting process.
- It improves board conveying stability and is particularly suitable for processing shorter corrugated sheets.
- Rubber rollers pull the board through the machine, while the roller gap supports automatic adjustment and electric fine-tuning.

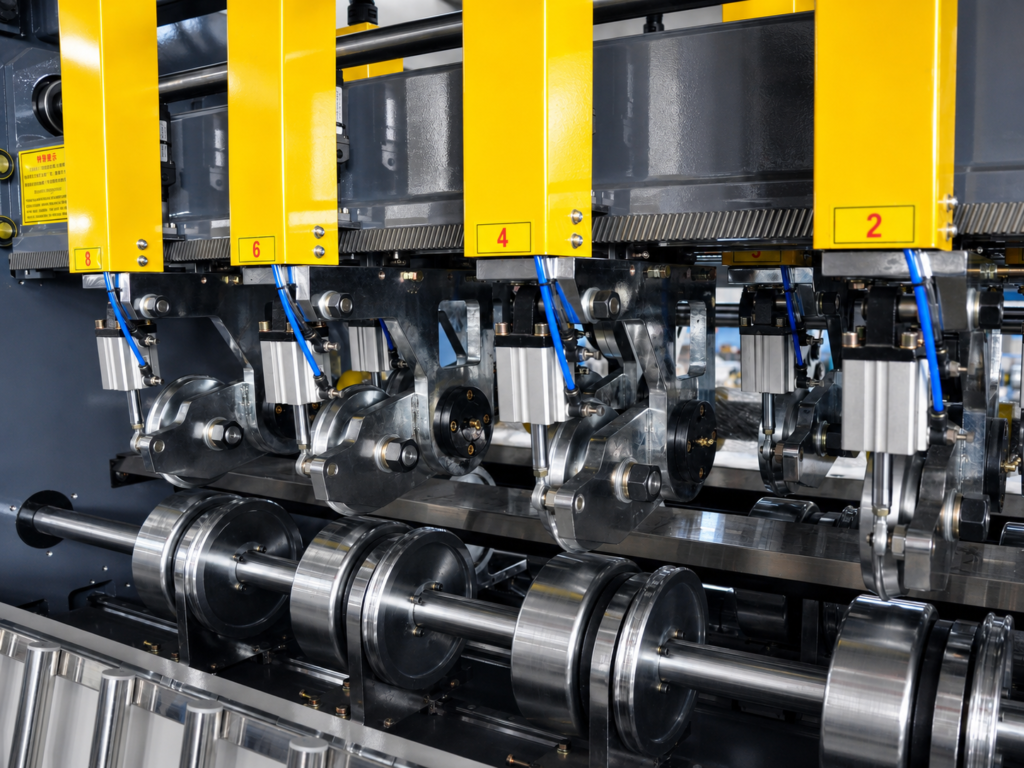

04. Pre-Scoring and Precision Scoring Unit
- The scoring section combines pre-scoring and precision scoring to create clear and accurate folding lines.
- The pre-scoring structure uses an upper pre-scoring wheel and a lower rubber roller.
- The precision scoring structure uses an upper convex wheel together with lower convex, concave and flat wheels.
- Paired scoring wheels allow smaller scoring distances and help reduce cracking when the corrugated board is folded.

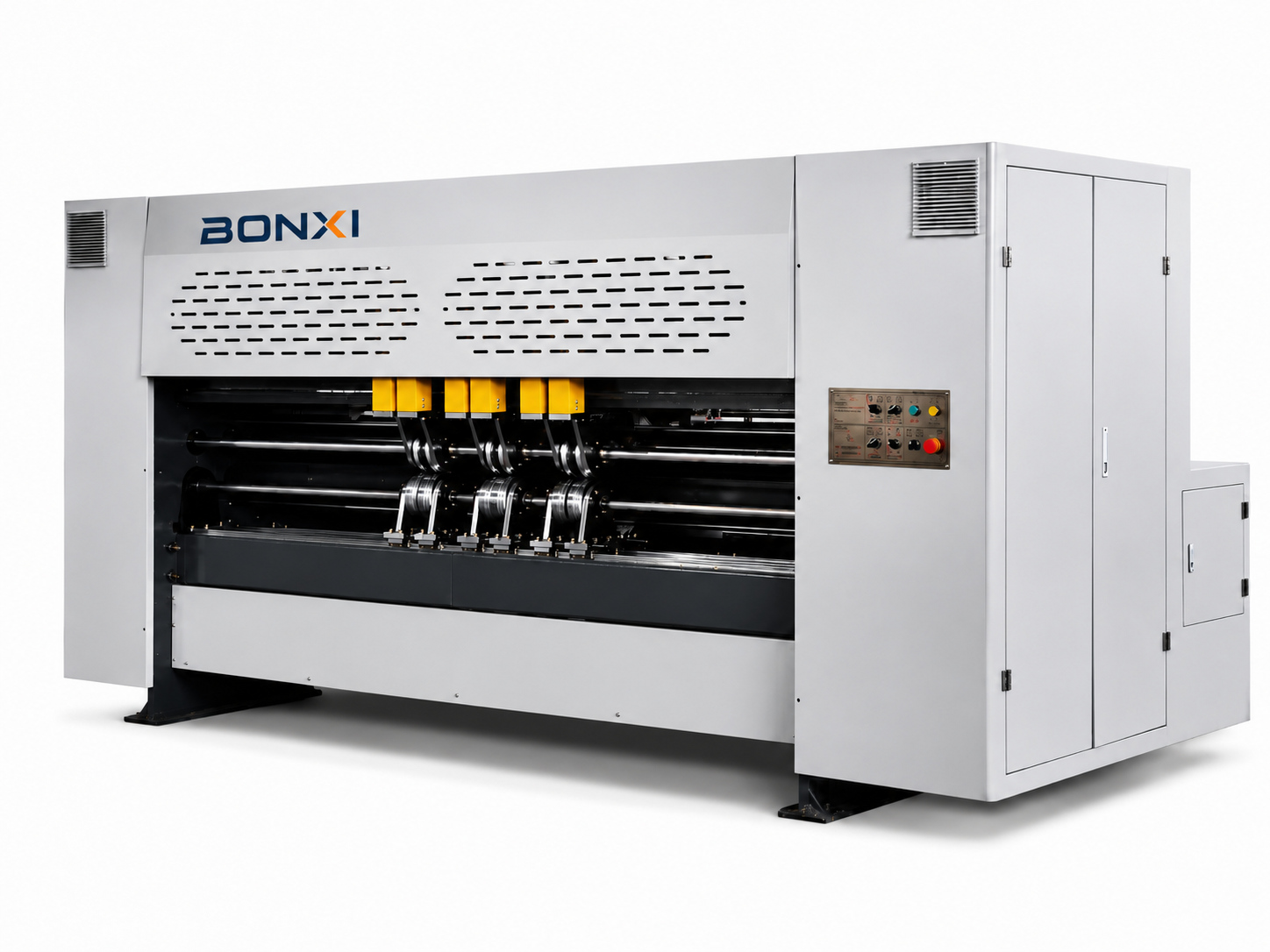

05. Complete Machine Overview
• The NCH-2800 integrates servo front edge feeding, thin blade slitting, sun-wheel board pressing, rubber roller conveying, pre-scoring and precision scoring in one machine.
• Its PLC touchscreen and full servo positioning system simplify operation and enable automatic knife and scorer adjustment.
• The standard configuration includes 4 slitting knives and 6 scoring wheels, and the knife and scorer quantities can be customized according to production requirements.
• The machine measures 4400 × 1800 × 1900 mm and weighs approximately 4200 kg.
