ZHM-1520QE Automatic Die Cutter with Stripping
Lead-edge feeding, flatbed die cutting and automatic waste stripping for corrugated packaging production.
Product Introduction
The ZHM-1520QE combines feeding, registration, flatbed die cutting, stripping and delivery in one automatic workflow. It is designed for F-, E- and double B-flute corrugated board, helping carton converters produce die-cut packaging with controlled sheet handling.
Pneumatic die locking, an air-assisted cutting-plate withdrawal system and automatic lubrication support routine setup and maintenance. The control system monitors machine status and provides fault-location information and corrective guidance.
Key Features
Controlled lead-edge feeding
A flat feed table and multiple hold-down rollers guide corrugated sheets into the machine, helping reduce skew and slippage.
Die cutting and automatic stripping
The flatbed cutting station works with a three-frame stripping unit. Upper and lower stripping frames allow lateral fine adjustment.
Registration and sheet control
Two independently adjustable front lays, fibre-optic sensors and an aluminium-alloy gripper bar support accurate sheet positioning.
Convenient die changeover
A rotating die chase and pneumatic locking simplify die installation. Air-assisted withdrawal makes cutting-plate handling easier.
Heavy-duty drive structure
Integral ductile-iron castings and a worm-wheel, crankshaft and rocker-link drive support stable cutting pressure.
Monitoring and lubrication protection
Microcomputer control provides operating-status information, fault guidance and alarms. Automatic forced lubrication includes an automatic stop if oil supply is lost.
Technical Parameters
| Model | ZHM-1520QE |
|---|---|
| Machine type | Automatic flatbed die cutter with stripping and lead-edge feeding |
| Maximum sheet size | 1520 × 1110 mm |
| Maximum die-cutting size | 1500 × 1100 mm |
| Minimum die-cutting size | 500 × 450 mm |
| Board types | F-, E- and double B-flute corrugated board |
| Die-cutting accuracy | ±0.5 mm |
| Maximum cutting force | Approx. 300 metric tons-force |
| Die-cutting speed | Approx. 5,000 cycles/hour |
| Adjustable gripper margin | 9–18 mm; at least 12 mm for board of five or more plies |
| Total power | Approx. 28 kW |
| Power supply | 380 V, three-phase, 50 Hz |
| Internal chase dimensions | 1122 × 1530 mm |
| Maximum feeder pile height | 1600 mm, including pallet |
| Maximum delivery pile height | 1400 mm, including pallet |
| Machine weight | Approx. 22 metric tons |
| Overall dimensions, including platform | 10028 × 4783 × 2479 mm (L × W × H) |
Actual operating speed depends on the job layout, board and operating conditions. Board-thickness suitability and the main motor rating must be confirmed for the supplied configuration. Final specifications are subject to the agreed technical configuration.
Machine Structure & Details

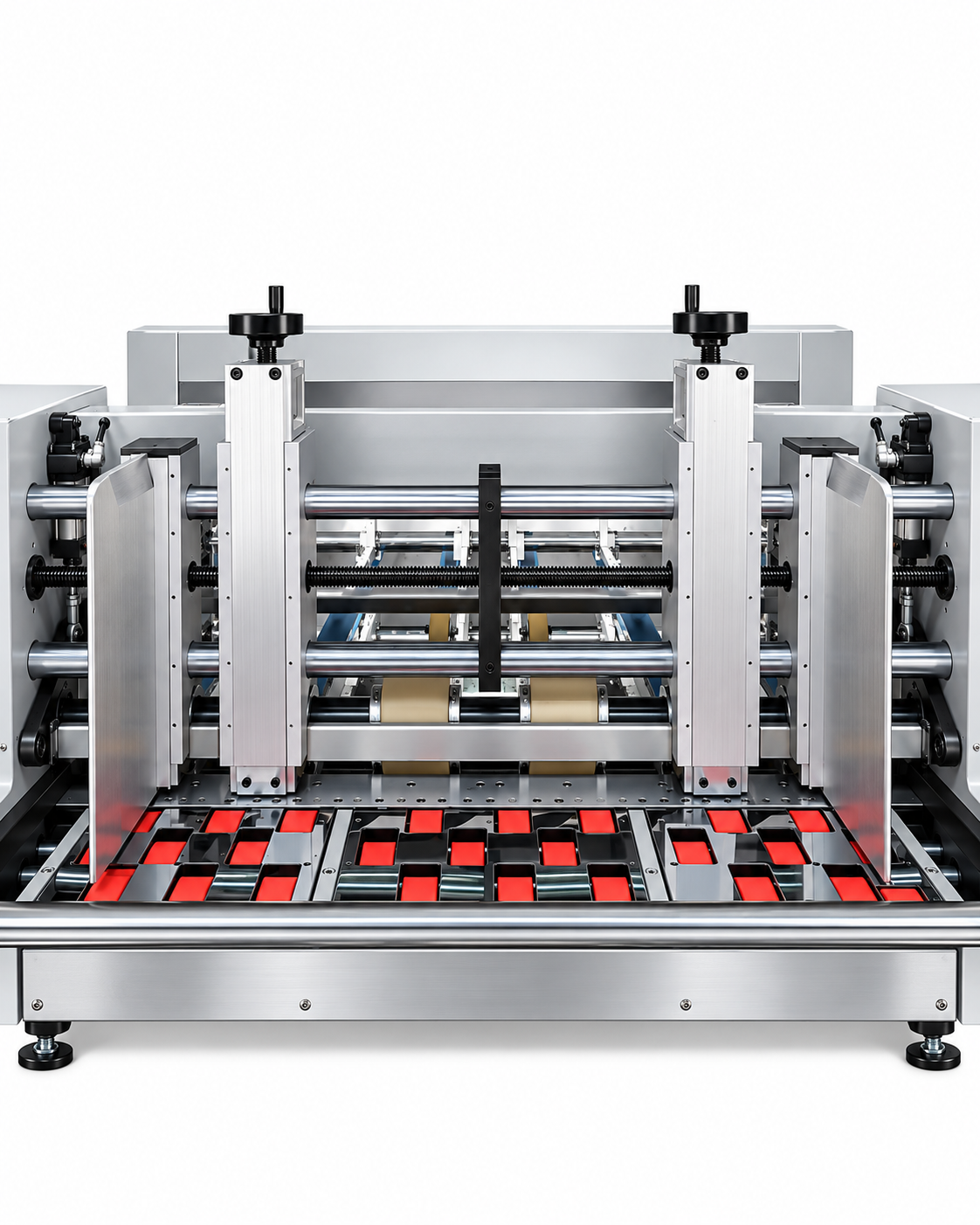

Lead-Edge Feeding
The short feeding path and hold-down rollers provide controlled entry into the die-cutting station.

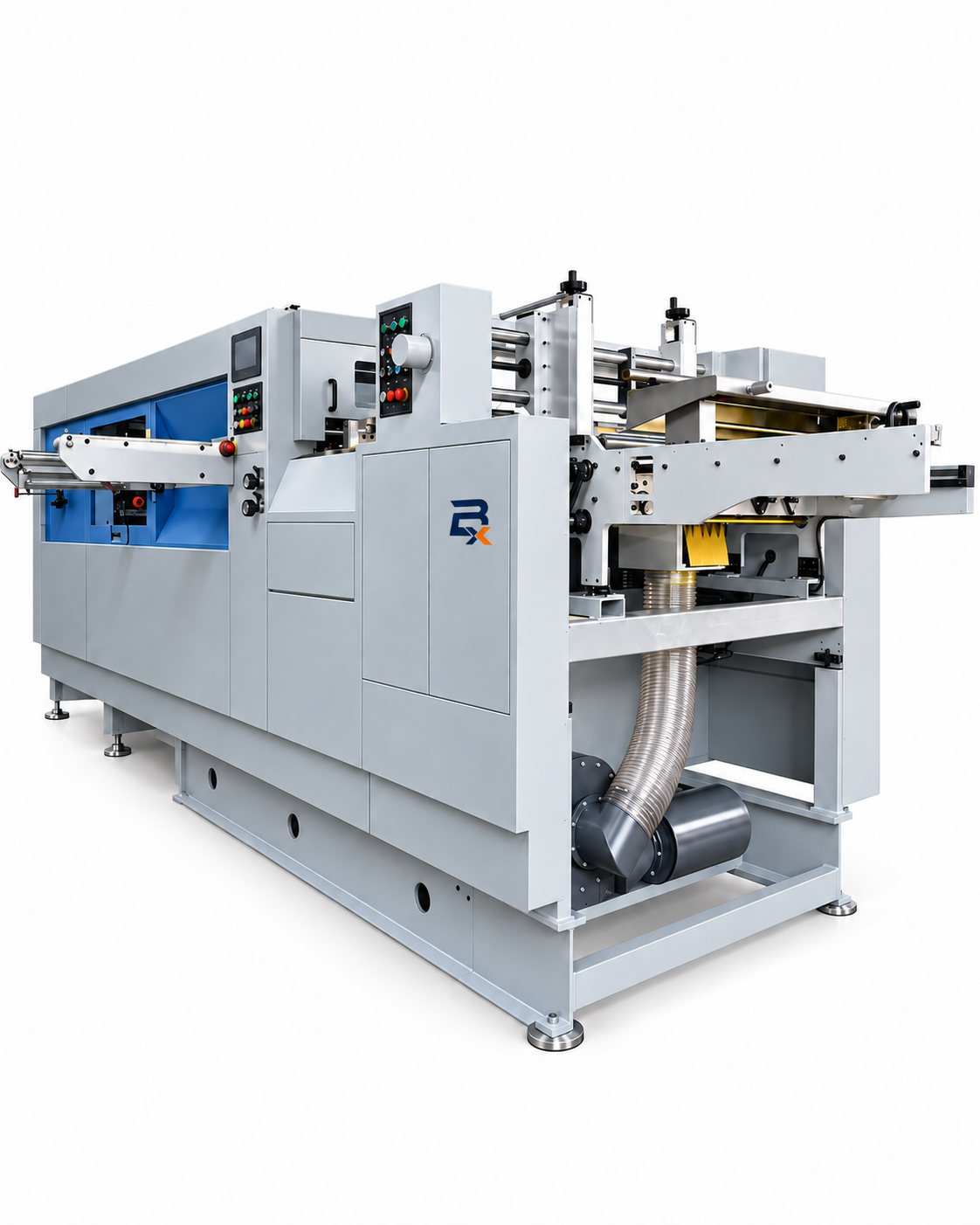

Feeding-Side Layout
The feeding-side view shows the sheet-entry arrangement and operator controls. Setup should match the board and job layout.

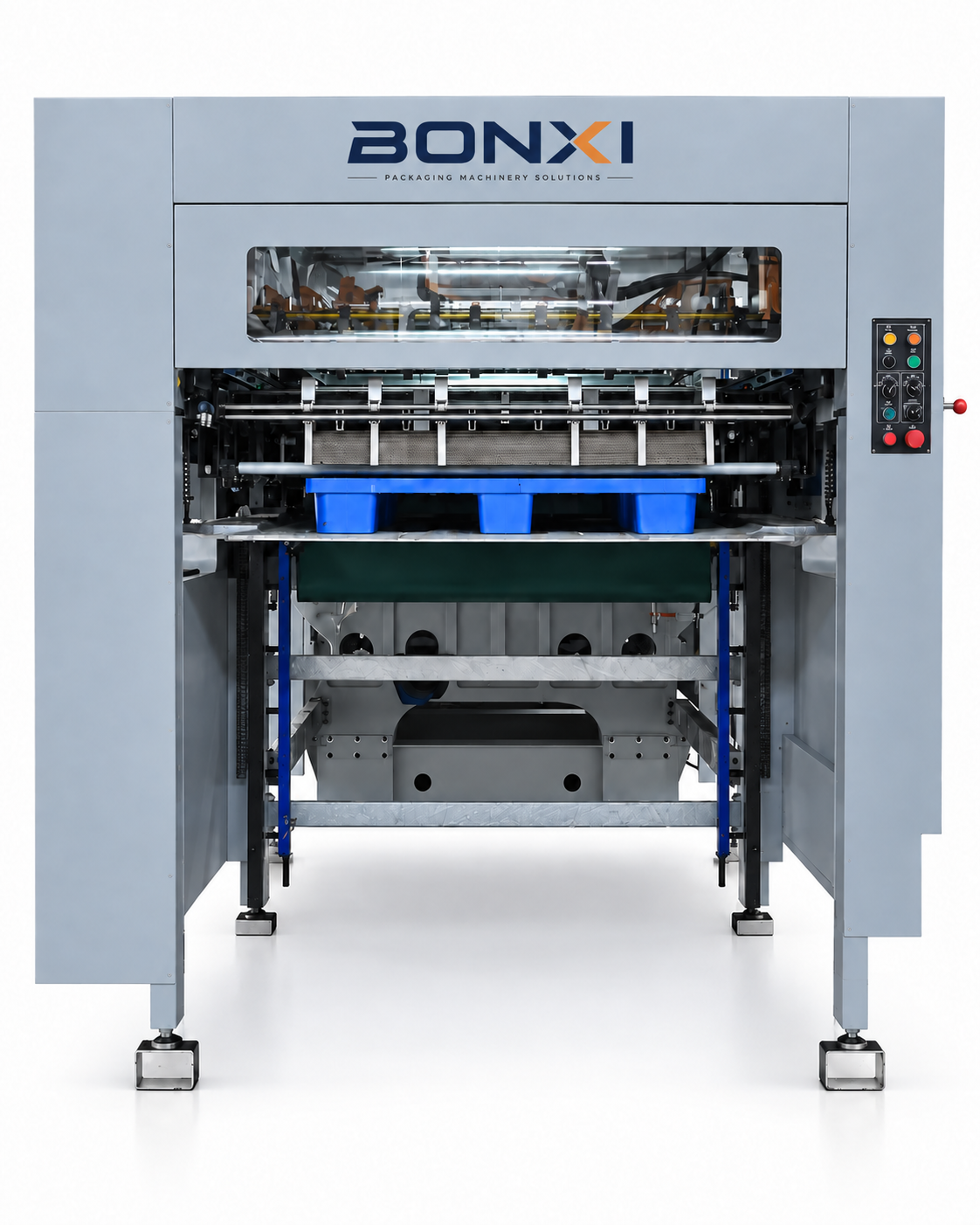

Delivery Section
Adjustable mechanical hold-down plates accommodate different multi-up layouts. Maximum delivery pile height is 1400 mm including the pallet.

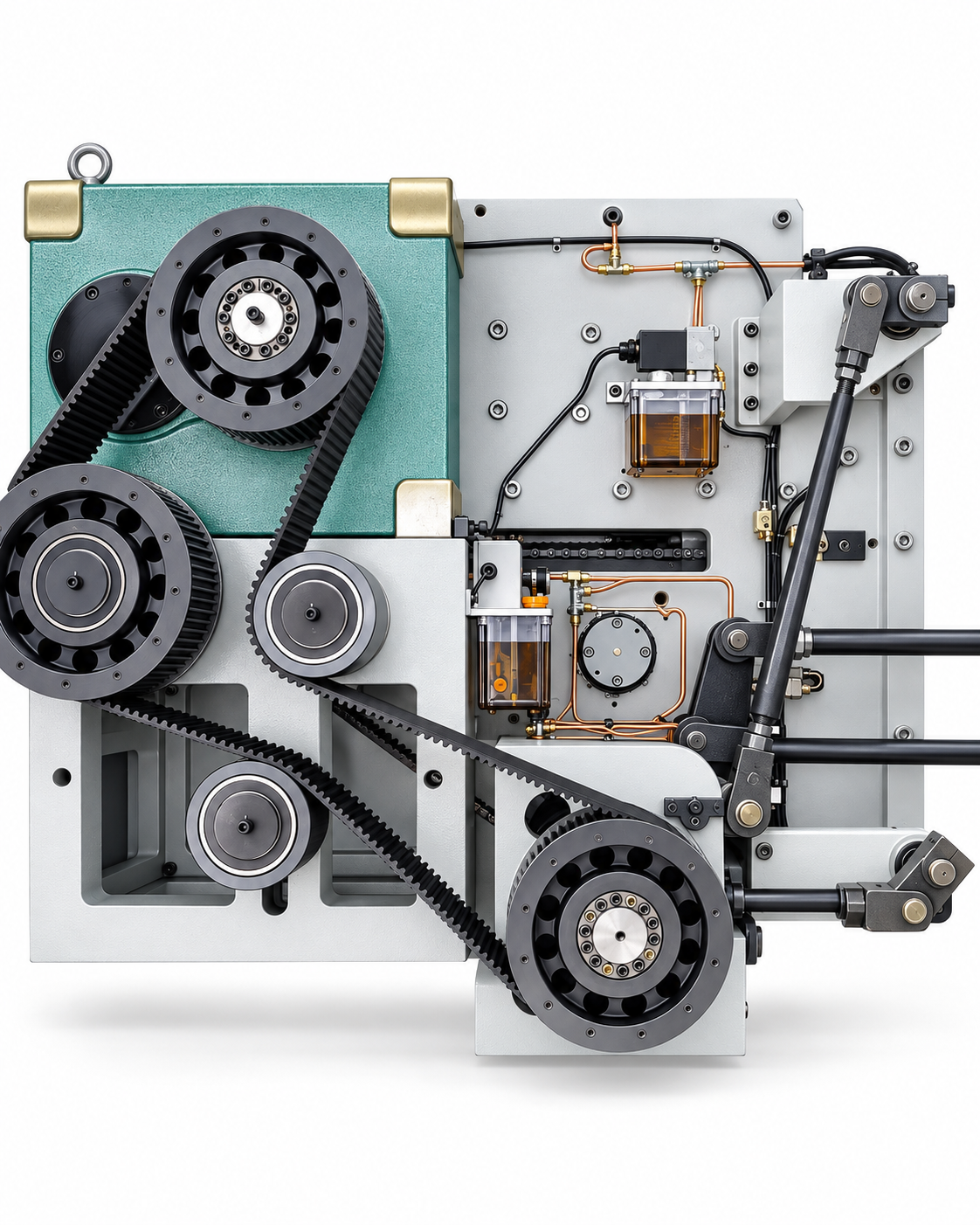

Drive and Lubrication
The drive arrangement supports controlled machine motion. Forced lubrication supplies the main drive, with oil-loss protection.

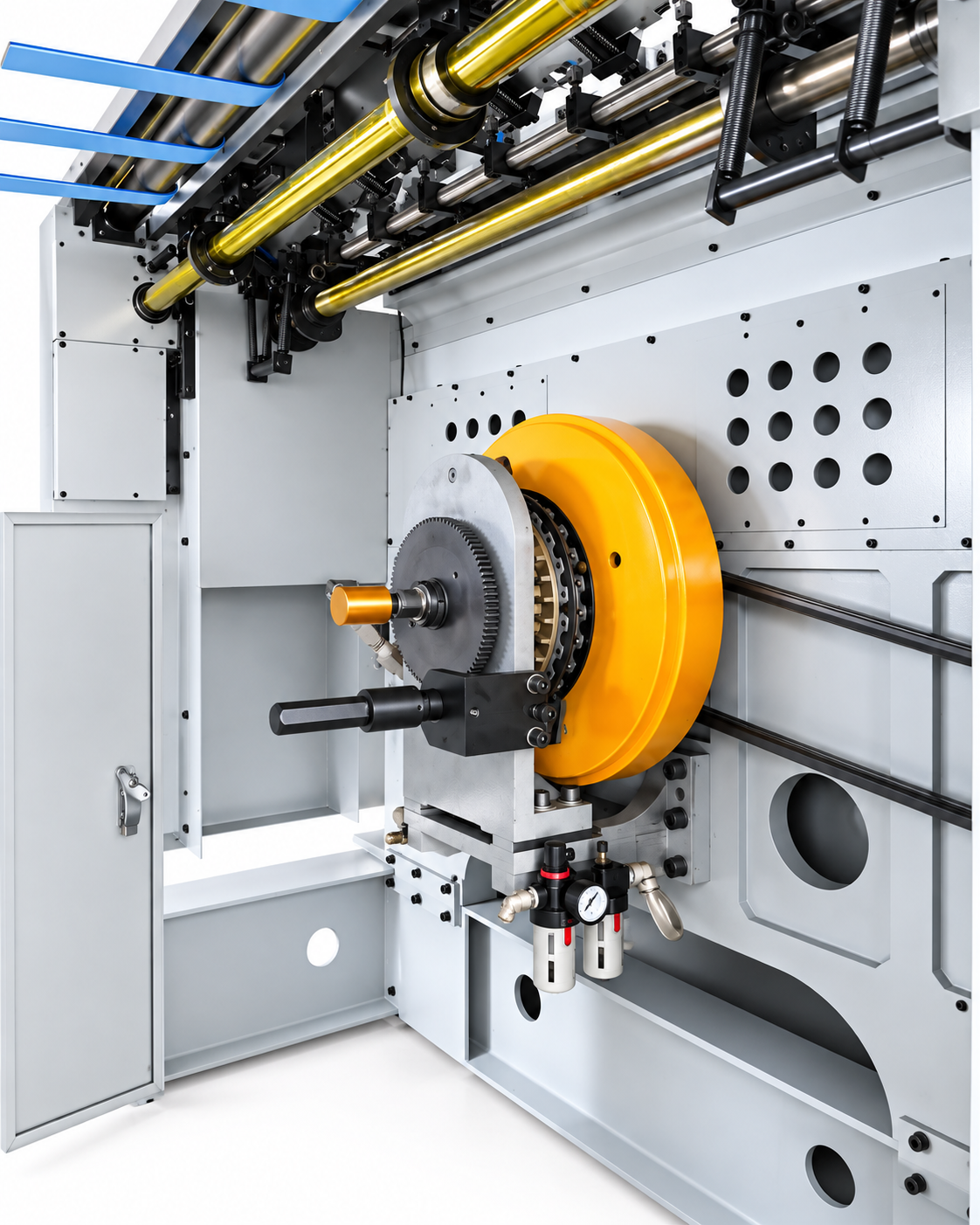

Pneumatic Clutch
Air-pressure adjustment controls transmitted torque. The clutch provides braking as part of the main drive system.

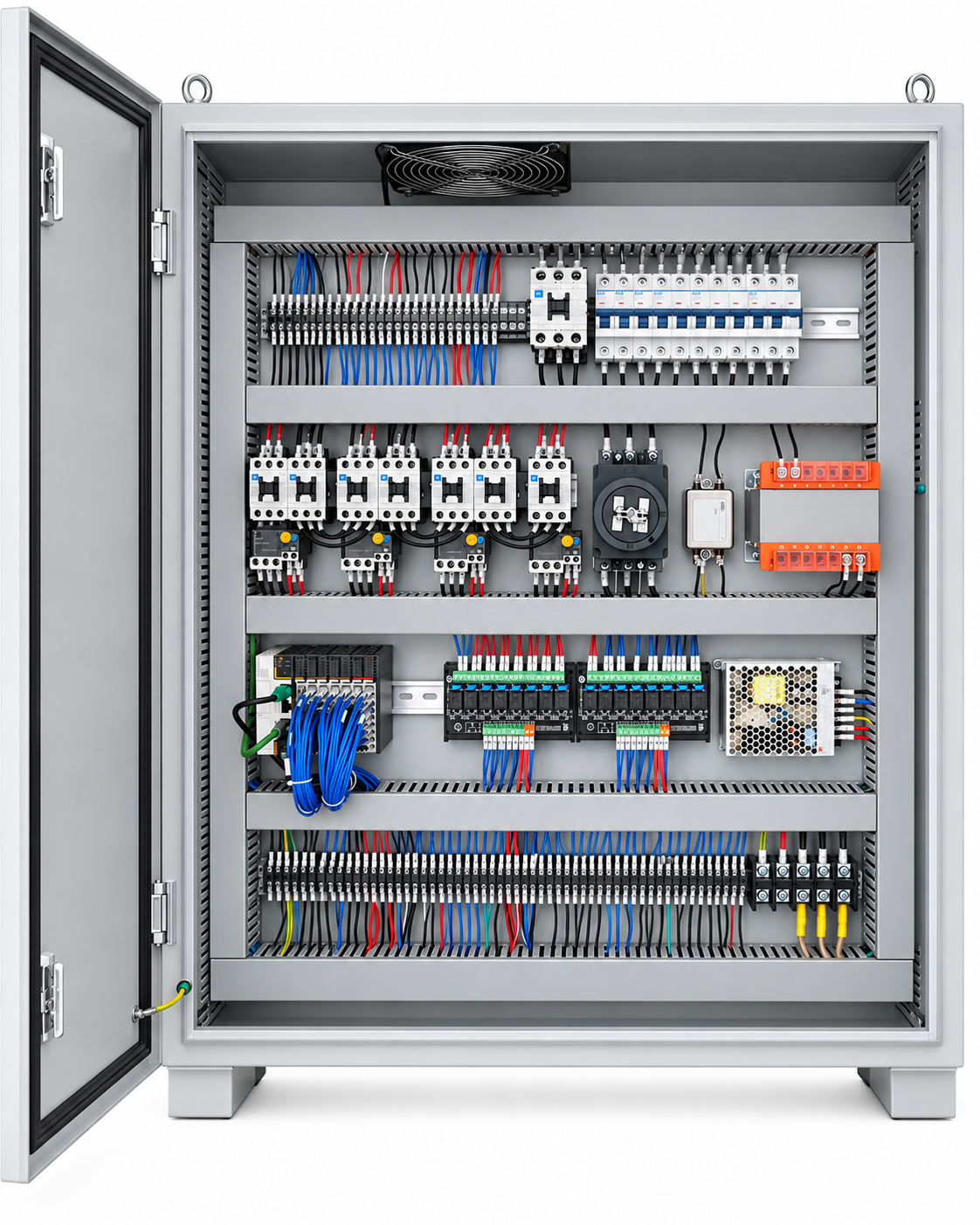

Electrical Controls
Microcomputer control coordinates feeding, registration, die cutting and delivery, with real-time monitoring and fault alarms.
Die Chase, Cutting Plate and Stripping Unit
The rotating chase uses pneumatic locking to secure the cutting die. A 7 mm cutting plate works with an air-assisted withdrawal system. The three-frame stripping mechanism allows lateral fine adjustment of the upper and lower frames to align the stripping position. Electric cutting-pressure adjustment is optional.
Applications
For corrugated packaging jobs requiring flatbed die cutting and waste removal, including shaped carton blanks and other die-cut corrugated components. Suitability depends on the die layout, board grade and finished-product requirements.
- Corrugated carton converting and packaging production.
- F-, E- and double B-flute board jobs within the confirmed working range.
- Multi-up layouts that require coordinated cutting, stripping and delivery.
Send BONXI your sheet dimensions, flute type, board thickness and product drawing so the configuration can be checked against your actual job.

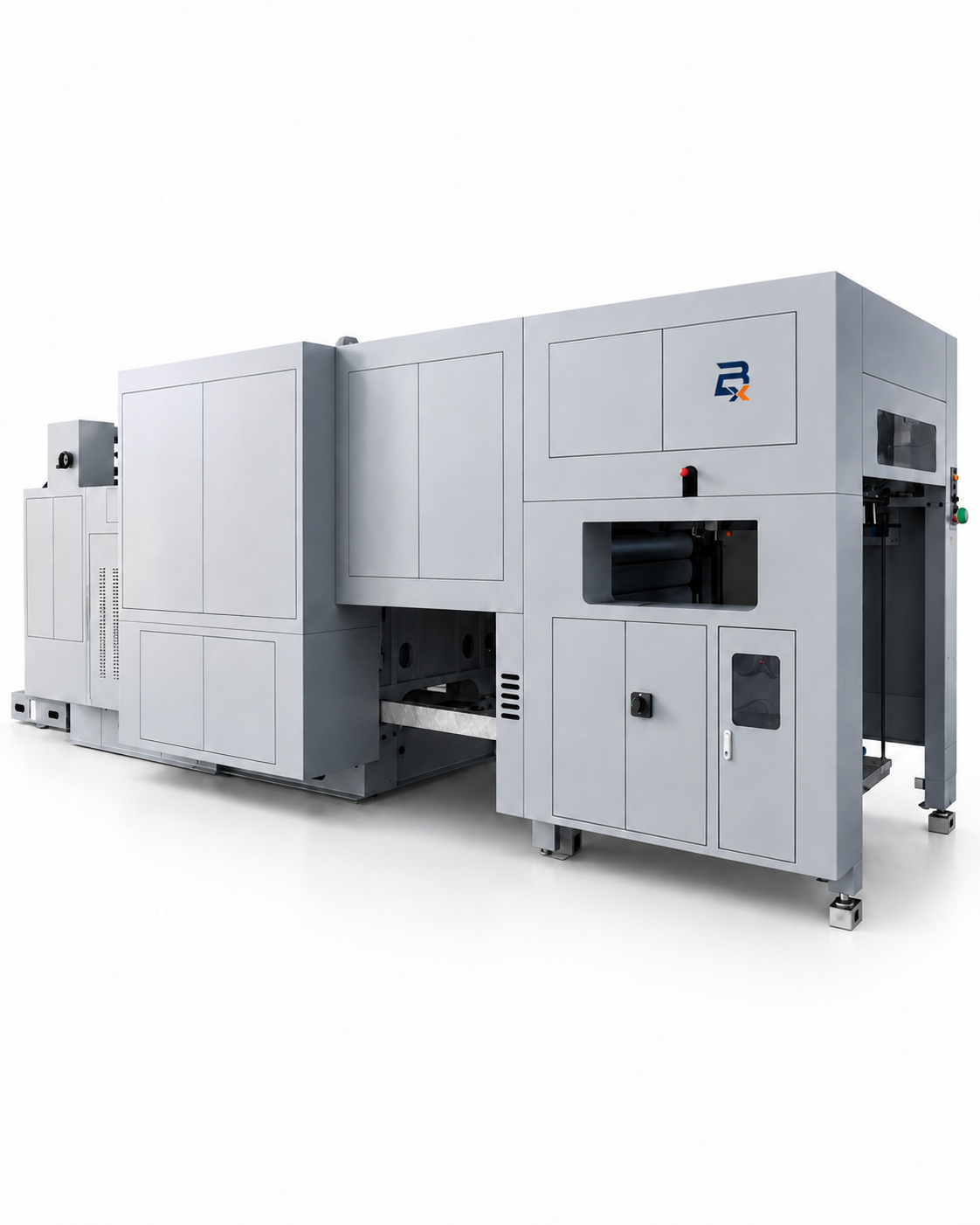

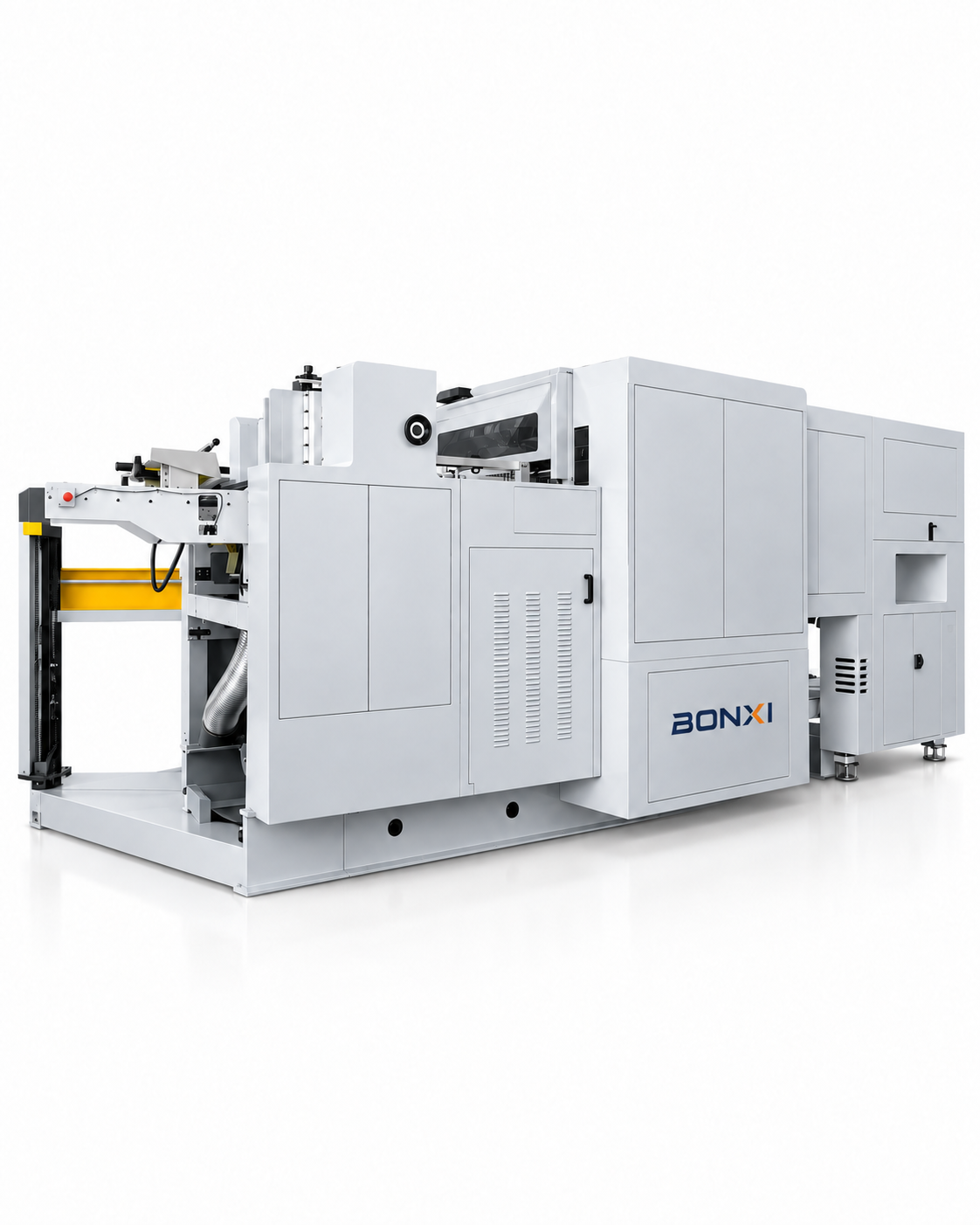

Additional Machine Views
Standard Accessories
- Extra-wide non-slip operator platform: 1 set.
- Die-chase assembly: 1 set.
- 7 mm cutting plate: 1 piece.
- Gripper bar: 1 piece.
- Dedicated operating tool kit: 1 set.
BONXI Service & After-Sales Support
Machine Selection & Project Planning
BONXI helps match equipment to your carton sizes, board materials, required capacity and available factory space. Customization requirements are reviewed before the configuration is finalized.
Installation & Operator Training
Installation, commissioning, operator training and routine-maintenance guidance are available. The service arrangement, duration and costs are confirmed in the quotation and sales contract.
Technical & Spare-Parts Support
Manuals, remote technical assistance and spare-parts support help with operation and maintenance throughout the machine's service life.
Warranty
BONXI's standard warranty period is 12 months after successful installation and commissioning, subject to the signed contract.
